1
Engine displacement
150
2
Model
LX
3
Year
0
4
Trim
LX 150
5
Parts Catalog

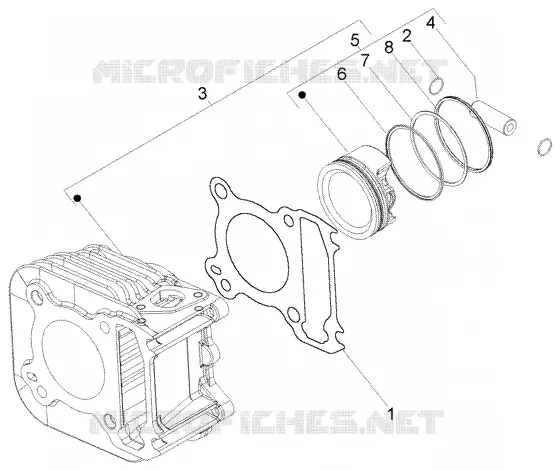

Cylinder-piston-wrist pin, assy
6
Parts Diagram
Parts Catalog
Handlebars component parts
by
Transmissions-brake piping
Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
8
1
Cylinder base gasket 0,8 mm
828148
Not Available
1
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
1
Cylinder base gasket 0,4 mm
828146
Not Available
2
Snap ring
963486
$0,05 Unit Price incl. VAT
3
Cylinder-piston-wrist pin assy.
827041
$203,31 Unit Price incl. VAT
4
Piston pin
482335
$4,92 Unit Price incl. VAT
5
Piston + piston pin Cat.2
8270280002
$87,84 Unit Price incl. VAT
5
Piston + piston pin Cat.3
8270280003
$79,02 Unit Price incl. VAT
5
Piston + piston pin Cat.1
8270280001
Not Available
5
Piston + piston pin Cat.4
8270280004
Not Available
6
Compression ring Ø62,6x1
486294
Not Available
7
Oil scraper ring Ø62,6x1
486295
Not Available
8
Oil scraper ring Ø62,6x2,5
486355
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
