Parts Catalog
Crankase
6
Parts Diagram
Parts Catalog
Carburettor
by
Carburettor (Walbro-Keihin)

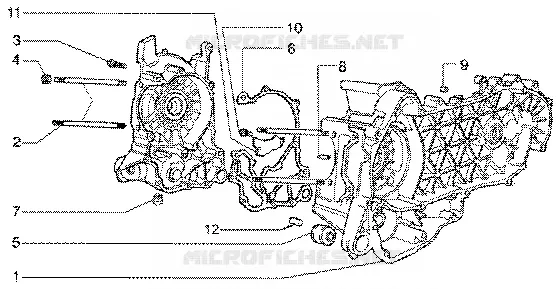

Crankase
1
2
3
4
5
6
7
8
9
10
11
12
1
Crank-case
CM1217095002
Not Available
1
Crank-case
CM1217095001
Not Available
1
Complete crankcase Cat.2
CM1280085002
Not Available
1
Crank-case
CM1136085001
Not Available
1
Crank-case
CM1136085002
Not Available
1
Complete crankcase Cat.1
CM1280085001
Not Available
2
Stud bolt
411295
$1,58 Unit Price incl. VAT
3
screw M6x60
432142
$0,19 Unit Price incl. VAT
4
Nut
434078
$0,33 Unit Price incl. VAT
5
Silent-block
486081
$6,73 Unit Price incl. VAT
6
Half crankcase gasket
829526
$5,31 Unit Price incl. VAT
7
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
8
Nozzle
484034
$6,44 Unit Price incl. VAT
9
Pin 6,5x9,5x15
239388
Not Available
10
Screw M5x10
018575
$2,95 Unit Price incl. VAT
11
Plate
825495
Not Available
12
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
