1
Engine displacement
150
2
Model
ET4
3
Year
0
4
Trim
ET4 150 Leader
5
Parts Catalog
Headlamp
6

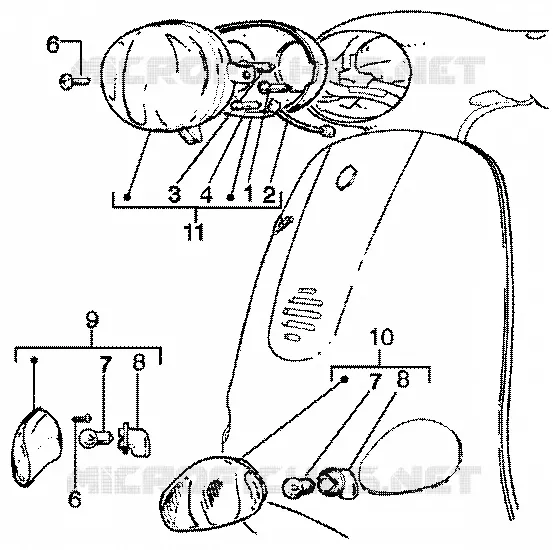

Parts Diagram
Parts Catalog
Electrical device
by
Rear guard
Headlamp
1
2
3
4
6
6
7
7
8
8
9
10
11
1
Lamp 12V-35/35W
219528
$13,37 Unit Price incl. VAT
1
Lamp H3 12V-55W
294278
$12,02 Unit Price incl. VAT
2
Cable harness
294354
Not Available
2
Cable harness
583017
Not Available
3
Lamp H7 12V-55W
294353
$17,40 Unit Price incl. VAT
4
Lamp 12V-5W
292022
Not Available
6
Self tapping screw M4x16
267115
$2,99 Unit Price incl. VAT
7
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
8
Lampholder
250521
$4,82 Unit Price incl. VAT
9
Fr. turn sig.lamp
581634
$20,52 Unit Price incl. VAT
10
Fr. turn sig.lamp
581633
$20,52 Unit Price incl. VAT
11
Headlamp
294277
$101,30 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
