1
Engine displacement
150
2
Model
ET4
3
Year
0
4
Trim
ET4 150 Leader
5
Parts Catalog

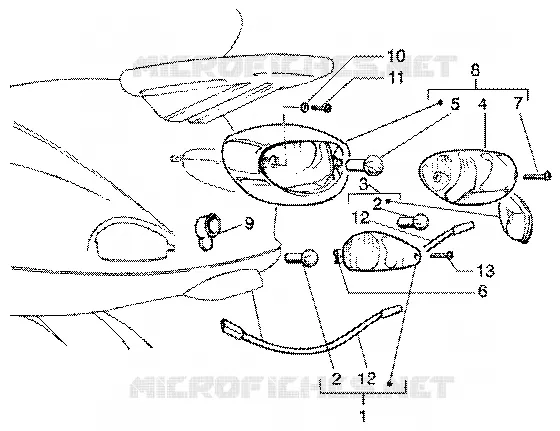

Rear tail lamp
6
Parts Diagram
Parts Catalog
Rear guard
by
Electrical device
Rear tail lamp
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
1
Turn signal lamp
581635
$20,52 Unit Price incl. VAT
2
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
3
Turn signal lamp
581636
$20,52 Unit Price incl. VAT
4
Glass
293967
$26,06 Unit Price incl. VAT
5
Lamp 12V-21/5W
129953
$7,81 Unit Price incl. VAT
6
Plate
267166
Not Available
7
screw
015729
$2,95 Unit Price incl. VAT
8
Taillight
293602
$106,65 Unit Price incl. VAT
9
Cap
250522
$4,82 Unit Price incl. VAT
10
Washer
013769
$2,95 Unit Price incl. VAT
11
Screw M4x12
015996
$0,08 Unit Price incl. VAT
12
Lampholder
250521
$4,82 Unit Price incl. VAT
13
Screw d3,5x9,5
008432
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
