1
Engine displacement
150
2
Model
ET4
3
Year
0
4
Trim
ET4 150 Leader
5
Parts Catalog

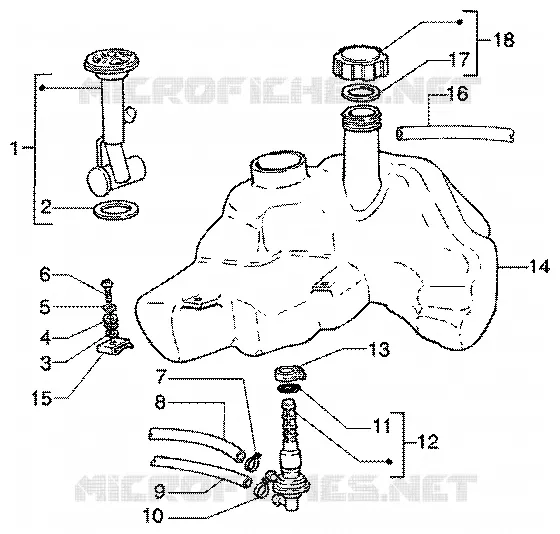

Fuel tank
6
Parts Diagram
Parts Catalog
Front glove compartment
by
Case helmet
Fuel tank
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Indicator fuel level
CM075602
Not Available
1
Level gauge
299570
Not Available
1
Level gauge
CM066902
Not Available
2
Gasket
258161
$1,10 Unit Price incl. VAT
3
Spacer
257302
$2,95 Unit Price incl. VAT
4
Pad
257301
$5,38 Unit Price incl. VAT
5
Washer
179575
$0,17 Unit Price incl. VAT
6
screw
257403
Not Available
7
Hose clamp
CM002904
$0,42 Unit Price incl. VAT
8
pipe
CM006104
Not Available
9
Breather pipe
296230
Not Available
10
Hose clamp
CM002902
$2,99 Unit Price incl. VAT
11
Gasket
196868
$3,70 Unit Price incl. VAT
12
Cock
575320
Not Available
13
Hose clamp
577557
Not Available
14
Tank
576875
Not Available
15
Spring plate M6
254485
$0,34 Unit Price incl. VAT
16
pipe
CM001215
Not Available
17
Tank cover gasket
258160
$1,00 Unit Price incl. VAT
18
Plug
259832
$1,10 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
