1
Engine displacement
150
2
Model
ET4
3
Year
0
4
Trim
ET4 150 Leader
5
Parts Catalog

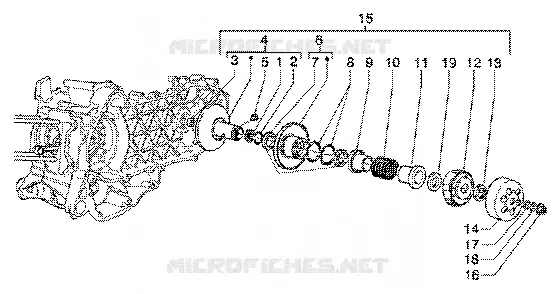

Driven pulley
6
Parts Diagram
Parts Catalog
Oil filter
by
Oil pump-oil pan
Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Roller cage 20x29x18
82518R
$12,62 Unit Price incl. VAT
2
Snap ring
483226
$0,72 Unit Price incl. VAT
3
Radial bearing 17x30
483261
Not Available
3
Bearing 17x30x7
82753R
$19,17 Unit Price incl. VAT
4
Fixed driven half pulley
830580
$69,28 Unit Price incl. VAT
5
Pin
479415
$0,68 Unit Price incl. VAT
6
Adjustable pulley, half
827499
Not Available
7
Gasket ring
431089
$2,55 Unit Price incl. VAT
8
Gasket
430585
$4,89 Unit Price incl. VAT
9
Pulley side cap
4310935
$9,79 Unit Price incl. VAT
9
Cup
840489
$0,33 Unit Price incl. VAT
10
Variator spring
825726
$5,64 Unit Price incl. VAT
11
Clutch side cap
487936
$5,73 Unit Price incl. VAT
12
Clutch, assy.
829184
Not Available
12
Centrifugal clutch assembly
CM144005
Not Available
13
Ring nut
433232
$2,31 Unit Price incl. VAT
14
Clutch drum
82751R
Not Available
14
Clutch drum
82517R
Not Available
14
Clutch drum
844049
Not Available
15
Clutch driven pulley assy.
830584
Not Available
16
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT
17
Spacer
827877
Not Available
18
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
19
Gasket ring
006410
$2,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
