1
Engine displacement
200
2
Model
GRANTURISMO
3
Year
2005
4
Trim
Granturismo L
5
Parts Catalog
Carburettor
6

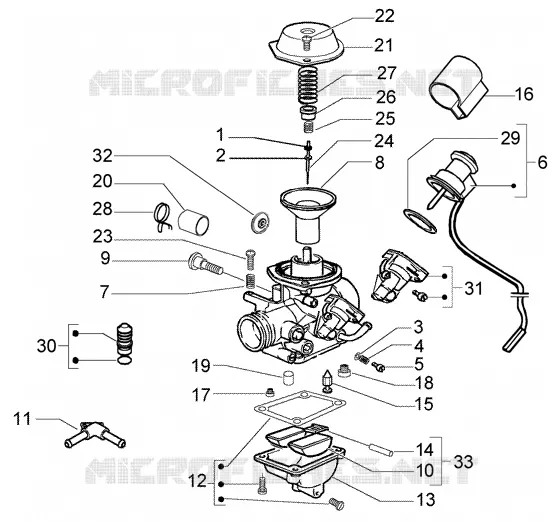

Parts Diagram
Parts Catalog
Carburettor
by
Crankase
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Circlip
826822
$0,72 Unit Price incl. VAT
2
Washer
826821
$0,68 Unit Price incl. VAT
3
Washer
826843
Not Available
4
Spring
826839
$0,65 Unit Price incl. VAT
5
Adj.min.eng.speed air screw
CM106402
$5,20 Unit Price incl. VAT
6
Starter
CM129802
Not Available
6
Automatic starter cpl.
CM142903
$161,18 Unit Price incl. VAT
7
Spring
826825
$0,74 Unit Price incl. VAT
8
Diaphragm Walbro
CM129701
$129,80 Unit Price incl. VAT
8
Diaphragm keihin
CM140301
$130,56 Unit Price incl. VAT
9
screw
826826
$1,39 Unit Price incl. VAT
10
Float
826812
$12,65 Unit Price incl. VAT
10
Float kit
842522
$24,62 Unit Price incl. VAT
11
Heater
842516
$29,77 Unit Price incl. VAT
11
Heater
828742
Not Available
12
screw
826770
$0,68 Unit Price incl. VAT
12
Float chamber kit
842523
$10,95 Unit Price incl. VAT
13
Float chamber
CM109809
Not Available
13
Float chamber
CM140401
Not Available
14
Lock
827856
Not Available
14
Pin
826811
$2,33 Unit Price incl. VAT
15
Petrol needle
828831
Not Available
15
Petrol needle
826786
Not Available
16
Starter cover
826866
$15,37 Unit Price incl. VAT
16
Cap
828844
$16,84 Unit Price incl. VAT
17
Idling jet
CM105303
Not Available
17
Idling jet
CM140102
$25,95 Unit Price incl. VAT
18
Maximum jet
CM105410
$9,18 Unit Price incl. VAT
18
Maximum jet
CM129902
Not Available
19
Starter cap
826768
Not Available
20
Air intake
841695
$7,69 Unit Price incl. VAT
21
Gas valve cover
827467
$24,03 Unit Price incl. VAT
21
Cover
842515
Not Available
22
screw
826780
Not Available
23
screw
826824
$4,04 Unit Price incl. VAT
24
Conical pin
CM106506
Not Available
24
Conical pin
CM140201
$11,06 Unit Price incl. VAT
25
Spring
826818
$1,96 Unit Price incl. VAT
26
Cup
826820
$6,45 Unit Price incl. VAT
26
Cup
842518
$4,82 Unit Price incl. VAT
27
Gas valve spring
CM107902
Not Available
27
Valve gas return spring
CM140901
Not Available
28
Hose clamp
CM002916
$3,65 Unit Price incl. VAT
29
Plate
828843
$3,03 Unit Price incl. VAT
30
Bellows kit
840453
Not Available
31
Starter device
842519
$27,50 Unit Price incl. VAT
32
CUT-OFF device membrane
CM119202
Not Available
33
Float kit
842522
$24,62 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
