Rear lights for SMT 50 E4 from 2018

Rear lights

1

LH front/RH rear turn indic.

AP8127784

$17,01 Unit Price incl. VAT

2

RH front/LH rear turn indic.

AP8127783

$17,01 Unit Price incl. VAT

3

Lamp RY10W 12V

AP8127489

$6,35 Unit Price incl. VAT

4

Hex socket screw

AP8152108

$0,16 Unit Price incl. VAT

5

Taillight

00H01009321

Not Available

6

Number-plate light

1D002474

$2,38 Unit Price incl. VAT

7

Rubber w/ insert M4

AP8144564

$4,49 Unit Price incl. VAT

8

Screw 4,2x16

AP8150522

$3,65 Unit Price incl. VAT

9

Rear reflector, red

AP8224164

$4,10 Unit Price incl. VAT

10

Self-locking nut M6

AP8152299

$0,34 Unit Price incl. VAT

11

Ring nut

00H01505051

Not Available

12

Grommet

00008915020

$0,67 Unit Price incl. VAT

13

Washer 6,4x18x2

AP8150378

$3,70 Unit Price incl. VAT

14

Low self-locking nut

AP8150430

$0,16 Unit Price incl. VAT

15

Self-locking nut M5

AP8152306

$3,65 Unit Price incl. VAT

16

Plate light wiring

2D000394

$9,58 Unit Price incl. VAT

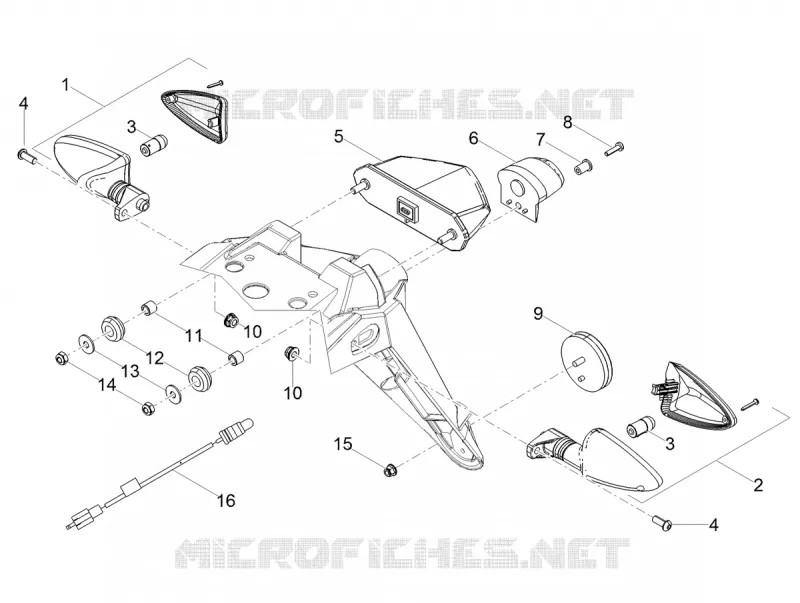

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
