1
Engine displacement
50
2
Model
SMT
3
Year
2006
4
Trim
SMT 50
5
Parts Catalog

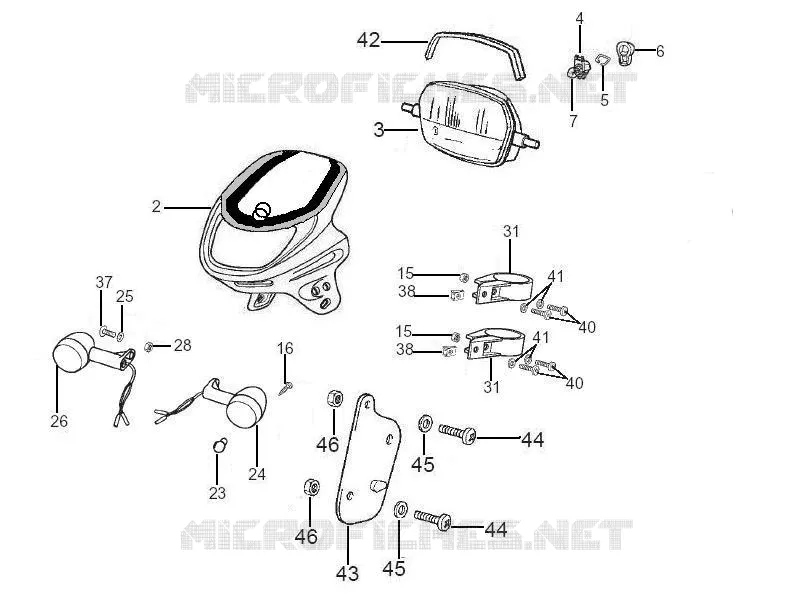

Front headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Main cable harness
by
Oil pump
Front headlamps - Turn signal lamps
2
3
4
5
6
7
15
15
16
23
24
25
26
28
31
31
37
38
38
40
40
41
41
42
43
44
44
45
45
46
46
2
SCTO.CARC.FARO NGR.GILERA ´06
86146700W0N
Not Available
2
SCTO.CARC.FARO RJO.DRG.GIL.´06
86146700W0R
Not Available
3
Headlight
00H01015011
Not Available
4
Lampholder
00003710110
$6,38 Unit Price incl. VAT
5
Spring
00H02305501
Not Available
6
Guard
00H05703141
$3,44 Unit Price incl. VAT
7
Lamp
00H01000131
Not Available
15
Rubber spacer
00H05701061
Not Available
16
screw 2,9X13
00011021300
$3,65 Unit Price incl. VAT
23
Lamp
0000A517011
Not Available
24
LH front/RH rear turn indic.
00H01703301
Not Available
25
Washer D6
00031106000
$2,25 Unit Price incl. VAT
26
RH front/LH rear turn indic.
00H01703391
Not Available
28
Nut M6100
00000023060
$2,95 Unit Price incl. VAT
31
Flange
00H04608841
Not Available
37
screw 6M100X30
00008063000
$3,65 Unit Price incl. VAT
38
Clip M5
00G04401462
$1,10 Unit Price incl. VAT
40
screw 5M80X12
00012051200
$3,65 Unit Price incl. VAT
41
Washer D5
00000031050
Not Available
42
Gasket
00H05701101
Not Available
43
Maintenance
00H01502741
Not Available
44
screw 5M80X12
00012051200
$3,65 Unit Price incl. VAT
45
Washer D5
00000031050
Not Available
46
Nut 5M80
00026005000
$3,65 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
