1
Engine displacement
50
2
Model
Surfer
3
Year
1999
4
Trim
Surfer
5
Parts Catalog

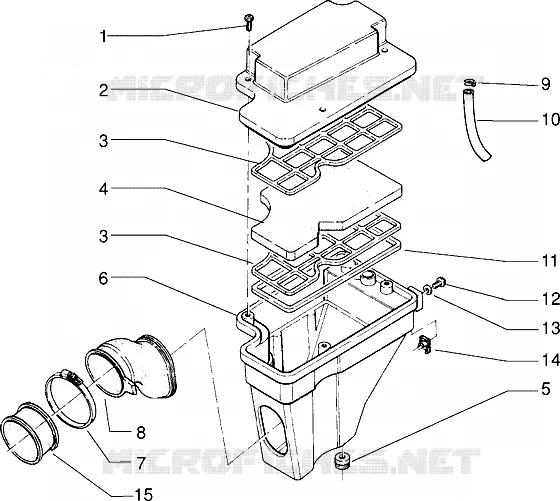

Air cleaner
6
Parts Diagram
Parts Catalog
Rear fork
by
Engine
Air cleaner
15
14
13
12
11
10
9
8
7
6
5
4
3
3
2
1
1
screw
809903
Not Available
2
Upper cower
942437
Not Available
3
Grid
942433
Not Available
4
Air filter
942438
Not Available
5
Pad
141590
$3,65 Unit Price incl. VAT
6
Lower cover
812248
Not Available
7
Hose clamp
289690
$2,96 Unit Price incl. VAT
8
Joint
942693
Not Available
9
Hose clamp
810281
Not Available
10
pipe
809930
Not Available
11
Gasket
942649
Not Available
12
screw
809903
Not Available
13
Washer
099335
Not Available
14
Spring plate M6
254485
$0,34 Unit Price incl. VAT
15
Joint
813320
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
