1
Engine displacement
50
2
Model
Surfer
3
Year
2001
4
Trim
Surfer
5
Parts Catalog

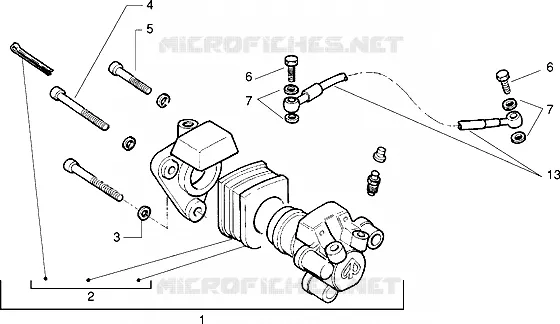

Front brake
6
Parts Diagram
Parts Catalog
Handlebars component parts
by
Brake pedal
Front brake
1
2
3
4
5
6
6
7
7
13
1
Brake caliper
813753
Not Available
2
Brake pads kit
812732
Not Available
3
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
4
screw
812702
Not Available
5
screw
812699
Not Available
6
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
7
Gasket
127927
$0,25 Unit Price incl. VAT
13
Piping
812778
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
