Engine displacement
50
2
Model
Surfer
3
Year
1998
4
Trim
Surfer
5
Parts Catalog
Main shaft
6
Parts Diagram
Parts Catalog
Selector drum
by
Counter shaft
Main shaft
1
1
2
3
4
5
6
7
8
9
9
10
11
12
13
1
Bearing
241894
Not Available
2
Plate
942095
Not Available
3
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
4
screw
315092
Not Available
5
Roller cage
435633
$4,81 Unit Price incl. VAT
6
Primary shaft assy
433863
Not Available
7
Gear 5a
432585
Not Available
8
Washer
432595
Not Available
9
Ring
432596
Not Available
10
Gear 2a
432588
Not Available
11
3rd-4th gear
432586
Not Available
12
Gear 6a
434199
Not Available
13
Washer
432595
Not Available

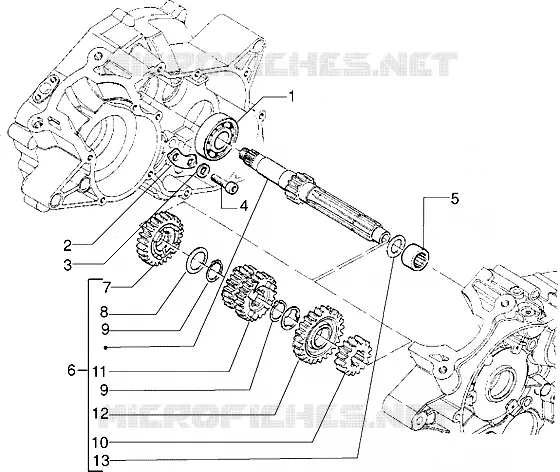

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
