Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Fairings
by
Fairings

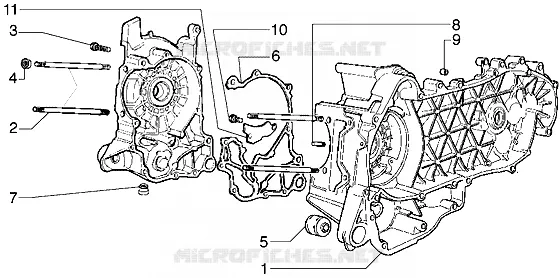

Crankcase
1
2
3
4
5
6
7
8
9
10
11
1
Crank-case
CM1136085001
Not Available
1
Crank-case
CM1136085002
Not Available
2
Stud bolt
829375
Not Available
3
screw M6x60
432142
$0,19 Unit Price incl. VAT
4
Nut M8x1,25
411296
$0,50 Unit Price incl. VAT
5
Silent-block
486081
$6,73 Unit Price incl. VAT
6
Half crankcase gasket
829526
$5,31 Unit Price incl. VAT
7
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
8
Nozzle
484034
$6,44 Unit Price incl. VAT
9
Pin 6,5x9,5x15
239388
Not Available
10
Screw M5x10
018575
$2,95 Unit Price incl. VAT
11
Plate
825495
Not Available
12
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
