1
Engine displacement
125
2
Model
RUNNER
3
Year
2002
4
Trim
Runner VX
5
Parts Catalog

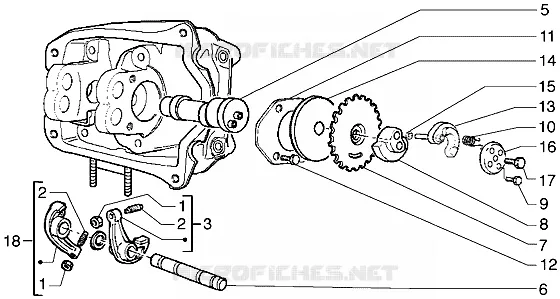

Rocker levers support
6
Parts Diagram
Parts Catalog
Head-Valves
by
Oil drain valve
Rocker levers support
1
2
2
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Nut
484819
$0,24 Unit Price incl. VAT
2
Screw m6x14,6
484654
Not Available
2
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
3
Rocker arm assy., exhaust
4847405
$39,03 Unit Price incl. VAT
3
Complete intake side rocker
4847395
$39,03 Unit Price incl. VAT
5
Camshaft
8338385
Not Available
5
Camshaft
8455185
$338,13 Unit Price incl. VAT
5
Camshaft
830450
Not Available
6
Rocker arms axis
486343
$2,77 Unit Price incl. VAT
7
Timing system gear
486336
$3,55 Unit Price incl. VAT
8
Decompressor counterweight
486331
Not Available
9
screw M6x35
414838
$0,67 Unit Price incl. VAT
10
Spring
486974
$0,15 Unit Price incl. VAT
11
Camshaft plate
833308
Not Available
12
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
13
Decompression counterweight
8291395
$15,46 Unit Price incl. VAT
14
Washer
487832
Not Available
15
Gasket
487833
$0,24 Unit Price incl. VAT
16
Decompression bell
826396
$3,93 Unit Price incl. VAT
17
Hex socket screw M5x30
018538
Not Available
18
Complete intake side rocker
4847395
$39,03 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
