1
Engine displacement
50
2
Model
RUNNER
3
Year
2003
4
Trim
Runner 50 SP
5
Parts Catalog
Front brake piping-front brake caliper
6
Parts Diagram
Parts Catalog
Rear damper
by
Brake caliper
Front brake piping-front brake caliper
2
3
4
5
6
7
8
9
10
2
Brake pads kit
498408
Not Available
2
Brake pads kit (Heng Tong)
497417
Not Available
3
Caliper (Heng Tong)
599754
Not Available
3
Caliper (Brembo)
560423
Not Available
4
Front brake tube
274351
Not Available
5
RONDELLA
127927
$0,25 Unit Price incl. VAT
6
VITE ESP.TE M10X18
265451
$9,25 Unit Price incl. VAT
7
RONDELLA ELASTICA
016408
$0,08 Unit Price incl. VAT
8
RONDELLA PIANA
003058
$0,08 Unit Price incl. VAT
9
VITE
597150
$3,65 Unit Price incl. VAT
9
VITE
015792
$0,51 Unit Price incl. VAT
10
Fairlead
274350
Not Available

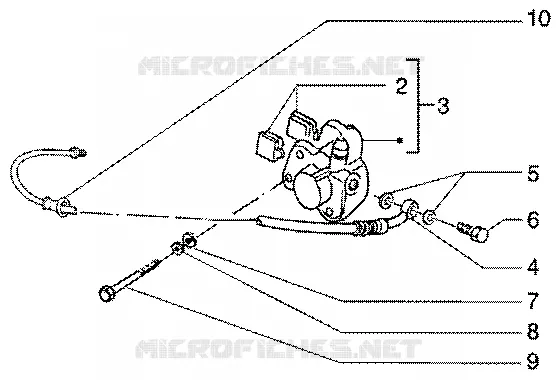

Find the detailed Front brake piping-front brake caliper GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
