Parts Catalog

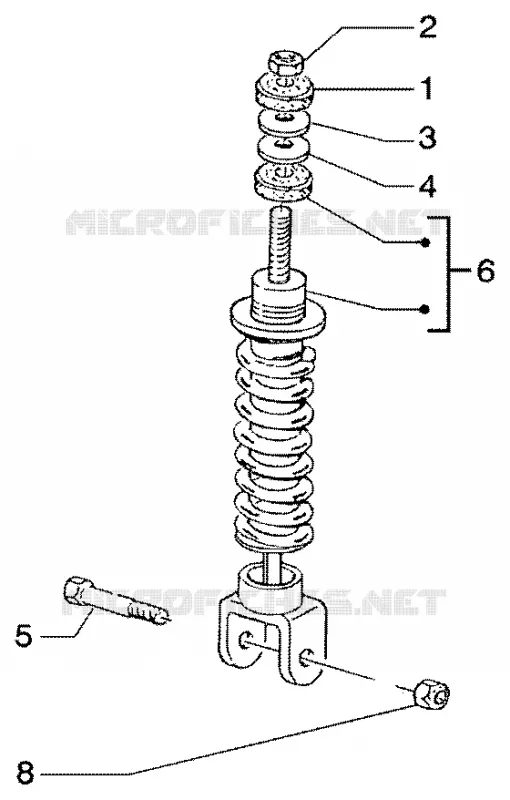

Rear damper
6
Parts Diagram
Parts Catalog
Swinging arm
by
Front brake piping-front brake caliper
Rear damper
1
2
3
4
5
6
8
1
TAMPONE SUPERIORE
178150
$0,92 Unit Price incl. VAT
2
DADO ESAGONALE NORMALE
021108
$0,25 Unit Price incl. VAT
3
RONDELLA PIANA
267038
$0,67 Unit Price incl. VAT
4
RONDELLA ELASTICA
016408
$0,08 Unit Price incl. VAT
5
VITE A TESTA ESAGONALE FLANG. PAR. FIL.
268158
$1,26 Unit Price incl. VAT
6
Shock absorber assembly
56441300R7
Not Available
6
Shock absorber
56441300GE
Not Available
6
Shock absorber
56441300RD
Not Available
8
Self locking nut M10
232108
Not Available

Find the detailed Rear damper GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
