1
Engine displacement
180
2
Model
RUNNER
3
Year
2002
4
Trim
Runner 180 VXR
5
Parts Catalog
Rear tail lamp
6

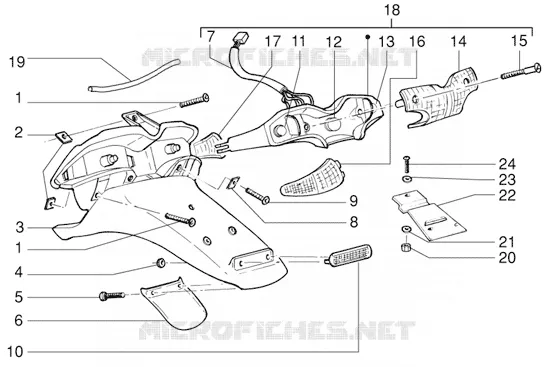

Parts Diagram
Parts Catalog
Front direction indicators
by
Electrical devices
Rear tail lamp
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
2
Spring plate M6
254485
$0,34 Unit Price incl. VAT
3
Rear guard
576111000C
Not Available
4
Spring plate
181351
$0,17 Unit Price incl. VAT
5
Self tapping screw
297498
$0,08 Unit Price incl. VAT
6
Guard
576172000C
Not Available
7
Cable harness
293565
Not Available
8
Spring plate
185802
$5,38 Unit Price incl. VAT
9
Screw M5x16
015715
$2,25 Unit Price incl. VAT
10
Reflector
294519
$5,88 Unit Price incl. VAT
11
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
12
Lamp 12V-21/5W
129953
$7,81 Unit Price incl. VAT
13
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
14
Glass
582120
Not Available
15
Self-tapping screw with plastic big end
290944
$2,50 Unit Price incl. VAT
16
Glass
294786
Not Available
17
Glass
294787
Not Available
18
Taillight
582119
Not Available
19
Guard
583282
$7,80 Unit Price incl. VAT
20
Nut M4
020104
$1,26 Unit Price incl. VAT
21
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
22
Number plate holder
5801254
Not Available
22
Number plate holder
581371
Not Available
22
Number plate holder
5801304
Not Available
23
Washer
013754
$0,22 Unit Price incl. VAT
24
screw M4x14
018591
Not Available
25
Number plate holder
2910094
Not Available
26
screw
121668
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
