1
Engine displacement
180
2
Model
RUNNER
3
Year
2001
4
Trim
Runner 180 FXR 2T
5
Parts Catalog
Catalytic silencer
6
Parts Diagram
Parts Catalog
Air cleaner
by
Silencer
Catalytic silencer
1
1
1
2
2
3
4
5
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
screw
827192
Not Available
2
RONDELLA ELASTICA 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
3
RONDELLA PIANA 5,3x10x0,8
003055
$0,08 Unit Price incl. VAT
4
Protection
482280
$18,14 Unit Price incl. VAT
4
Guard
480990
Not Available
5
RONDELLA PIANA 16x5,2x1
013754
$0,22 Unit Price incl. VAT
6
DADO
001564
$0,27 Unit Price incl. VAT
7
RONDELLA ELASTICA
016408
$0,08 Unit Price incl. VAT
8
ROSETTA PIANA 13x8,4
016604
$2,99 Unit Price incl. VAT
10
Gasket
432127
Not Available
11
VITE
015792
$0,51 Unit Price incl. VAT
12
Exhaust pipe
484344
Not Available
13
DADO AFR FLG M8 CL6S H
015341
$0,42 Unit Price incl. VAT
14
RONDELLA PIANA 12x5,2x1
006078
$0,08 Unit Price incl. VAT
15
Screw m8x50
432334
$3,65 Unit Price incl. VAT
15
VITE T.C.E.I. M8X50
844483
$0,67 Unit Price incl. VAT
16
Guard
825327
Not Available
17
Tyre
486993
Not Available
18
Guard
486985
Not Available
19
Muffler, assy.
827170
Not Available
19
Muffler, assy.
478520
Not Available
20
Tyre
825868
Not Available
21
ROSETTA METALLICA
016195
$2,95 Unit Price incl. VAT
22
VITE A TESTA ESAGONALE
433122
$3,65 Unit Price incl. VAT
23
Washer
827193
Not Available
24
Washer
827564
Not Available
24
Washer
103556
Not Available

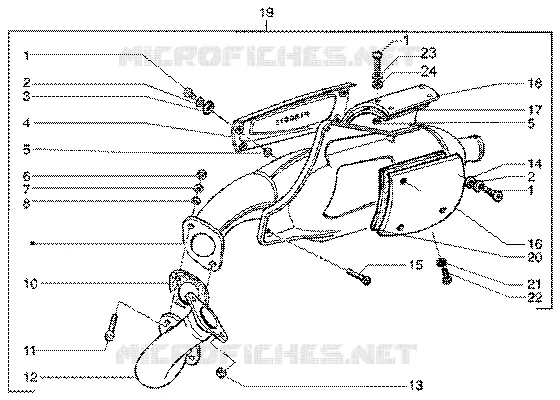

Find the detailed Catalytic silencer GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
