1
Engine displacement
180
2
Model
RUNNER
3
Year
1999
4
Trim
Runner 180 FXR 2T
5
Parts Catalog
Rear tail lamp
6
Parts Diagram
Parts Catalog
Front direction indicators
by
Electrical devices
Rear tail lamp
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
2
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
3
Guard
298136000P
Not Available
3
Rear guard
298136000D
Not Available
4
PIASTRINA ELASTICA
181351
$0,17 Unit Price incl. VAT
5
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT
6
Splash guard
573925000P
Not Available
6
Guard
573925000D
Not Available
7
Cable harness
293565
Not Available
8
Spring plate
826275
Not Available
8
Plate
196272
Not Available
9
Screw M5x16
015715
$2,25 Unit Price incl. VAT
10
CATADIOTTRO
294519
$5,88 Unit Price incl. VAT
11
LAMPADA A BULBO 12V-10
181746
$3,28 Unit Price incl. VAT
12
LAMPADA 12V-21/5W
129953
$7,81 Unit Price incl. VAT
13
LAMPADA A BULBO 12V-10
181746
$3,28 Unit Price incl. VAT
14
Glass
584030
Not Available
14
Glass
294528
Not Available
15
Self tapping screw
584458
Not Available
15
VITE
290944
$2,50 Unit Price incl. VAT
16
Glass
294786
Not Available
16
TRASPARENTE LAMP.POST.SX FUME'
584020
$10,28 Unit Price incl. VAT
17
TRASPARENTE LAMP.POST.DX FUME'
584021
$10,28 Unit Price incl. VAT
17
Glass
294787
Not Available
18
Headlight
584014
Not Available
18
Taillight
294508
$97,81 Unit Price incl. VAT
19
PROTEZIONE BORDO SCOCCA
583282
$7,80 Unit Price incl. VAT
20
DADO M4 - 6H
020104
$1,26 Unit Price incl. VAT
21
RONDELLA ELASTICA
016404
$0,42 Unit Price incl. VAT
22
Number plate holder
5801254
Not Available
22
Number plate holder
581371
Not Available
22
Number plate holder
580130
Not Available
23
RONDELLA PIANA 16x5,2x1
013754
$0,22 Unit Price incl. VAT
23
RONDELLA PIANA METALLICA (12x4,2x1)
013763
$0,08 Unit Price incl. VAT
24
screw M4x14
018591
Not Available

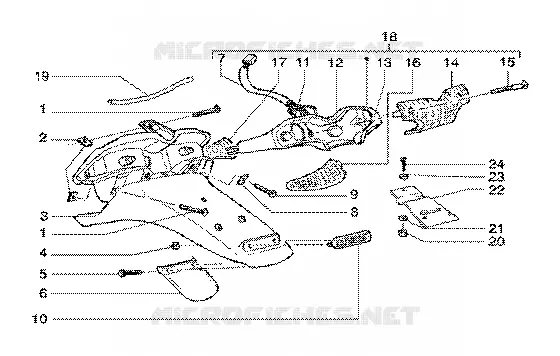

Find the detailed Rear tail lamp GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
