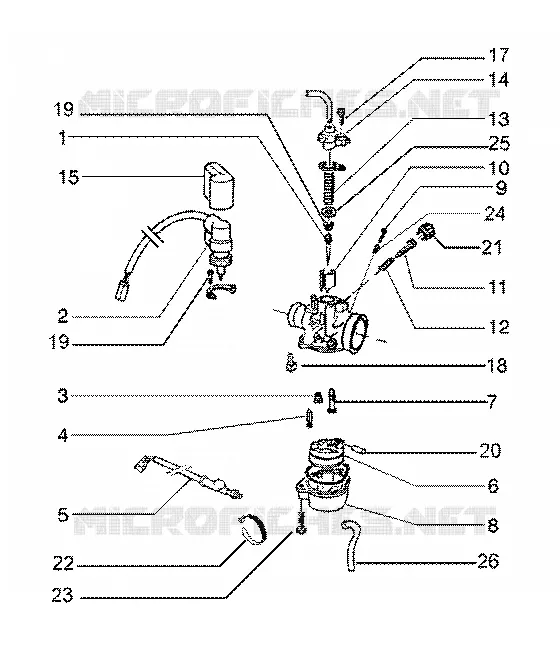

Carburettor dell'orto
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
19
20
21
22
23
24
25
26
1
Conical pin
487123
Not Available
2
Starter device
82566R
Not Available
2
Starter device
432519
Not Available
3
Main jet
CM101738
$6,35 Unit Price incl. VAT
4
Jet Needle
482915
Not Available
5
Resistor Module
825065
Not Available
6
Float cpl.
482916
$12,66 Unit Price incl. VAT
7
Idle jet
487479
Not Available
8
Float chamber
484369
Not Available
9
Screw
CM107704
$4,82 Unit Price incl. VAT
10
Gas valve
432507
Not Available
10
Gas valve
825843
Not Available
11
Screw
CM107705
Not Available
11
screw
432521
Not Available
12
Spring
432515
$1,05 Unit Price incl. VAT
13
Spring
432419
Not Available
13
Spring
432511
Not Available
14
Crank-case
8253595
Not Available
14
Cover
432412
Not Available
15
Guard
288883
Not Available
16
screw
289575
$0,68 Unit Price incl. VAT
17
screw
432413
Not Available
18
Complete oil valve
436206
$8,68 Unit Price incl. VAT
19
O-ring
432416
Not Available
20
Float pin
288881
$0,97 Unit Price incl. VAT
21
Pin
432425
Not Available
22
Hose clamp
109960
Not Available
23
Float chamber fixing screw
288862
$0,62 Unit Price incl. VAT
24
Spring
085285
$4,82 Unit Price incl. VAT
25
Plate
432417
Not Available
26
Baffle tube
113903
$4,32 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
