Engine displacement
500
2
Model
NEXUS
3
Year
2004
4
Trim
Nexus 500
5
Parts Catalog
Head-Valves
6

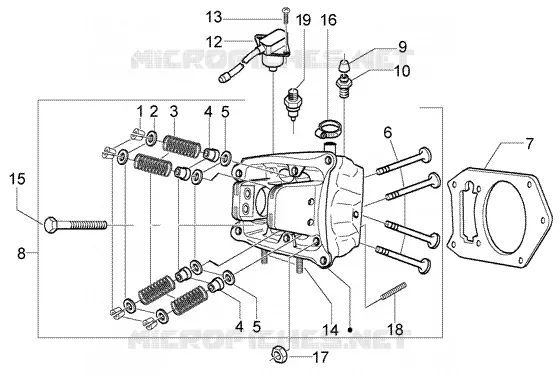

Parts Diagram
Parts Catalog
Cylinder-Piston-Wrist Pin, Assy
by
Rocker Levers
Head-Valves
1
2
3
4
4
5
5
6
7
8
9
10
12
13
14
15
16
17
18
19
1
Valve half-cone
285846
$2,94 Unit Price incl. VAT
2
Upper cup
828396
$118,11 Unit Price incl. VAT
3
Valve spring
826103
$2,67 Unit Price incl. VAT
4
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
5
Lower cup
826256
$0,86 Unit Price incl. VAT
6
Intake valve
828322
$29,24 Unit Price incl. VAT
6
Exhaust valve
828321
$20,54 Unit Price incl. VAT
7
Cylinder head gasket
830008
$21,98 Unit Price incl. VAT
8
Cylinder head assembly
831039
Not Available
9
Bleed valve cap
063435
$0,34 Unit Price incl. VAT
10
Bleed screw
430045
$2,40 Unit Price incl. VAT
11
Stud bolt M6
827953
$3,21 Unit Price incl. VAT
12
Sensor
5847685
Not Available
13
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
14
Exhaust pipe stud bolt M8x3x46
827018
Not Available
15
screw M6x90
830278
$2,95 Unit Price incl. VAT
16
Hose clamp
CM001915
$1,03 Unit Price incl. VAT
17
High hexagonal nut
832783
$2,83 Unit Price incl. VAT
18
Stud bolt M6
827953
$3,21 Unit Price incl. VAT
19
Temp. Sensor
828646
$63,50 Unit Price incl. VAT
