1
Engine displacement
50
2
Model
ICE
3
Year
2001
4
Trim
ICE
5
Parts Catalog
Driving pulley
6
Parts Diagram
Parts Catalog
Driven pulley
by
Rear wheel shaft

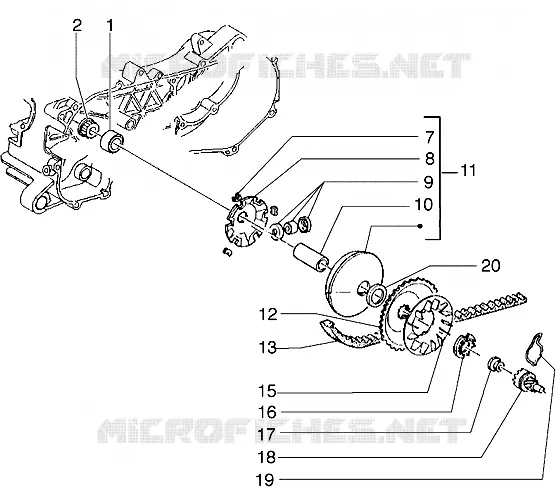

Driving pulley
1
2
7
8
9
10
11
12
13
15
16
17
18
19
20
1
Spacer
479495
$1,44 Unit Price incl. VAT
2
Toothed pulley
286158
$1,35 Unit Price incl. VAT
7
Sliding block
289931
$4,82 Unit Price incl. VAT
8
Roller contrast
480227
$12,88 Unit Price incl. VAT
9
6 rollers kit
CM1102015
$21,20 Unit Price incl. VAT
10
Spacer
480230
$15,54 Unit Price incl. VAT
11
Half-pulley assy., driving
CM110302
$93,15 Unit Price incl. VAT
12
Fixed driving half pulley
479561
$12,19 Unit Price incl. VAT
13
V-belt
436864
$13,99 Unit Price incl. VAT
15
Pulley disk
480410
Not Available
16
Toothed bushing
479866
Not Available
17
Flanged nut M10x1,25
289519
$0,56 Unit Price incl. VAT
18
Pinion starter
483537
$8,63 Unit Price incl. VAT
19
Elastic spring
830212
$0,82 Unit Price incl. VAT
20
Spacer 25 KM/H
CM100610
$3,65 Unit Price incl. VAT
20
Spacer
CM100604
$3,65 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
