Parts Catalog

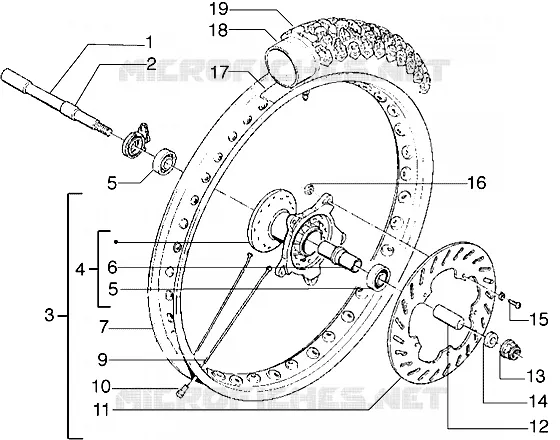

Front wheel
6
Parts Diagram
Parts Catalog
Transmissions-switch-Driving mirror
by
Rear wheel
Front wheel
1
2
3
4
5
5
6
7
9
10
11
12
13
14
15
16
17
18
19
1
Wheel axle
814137
Not Available
2
Spacer
810544
$3,65 Unit Price incl. VAT
3
FRONT WHEEL
814425
Not Available
4
Hub, assy.
814144
Not Available
5
Bearing
813615
Not Available
6
Spacer
814150
Not Available
7
Wheel
814187
Not Available
9
Spoke
814251
Not Available
10
Nipple
814208
Not Available
11
Brake disc
809471
$65,75 Unit Price incl. VAT
12
Spacer
809514
Not Available
13
Nut
805410
Not Available
14
Spacer
810544
$3,65 Unit Price incl. VAT
15
screw
809511
Not Available
16
Nut
810511
$3,65 Unit Price incl. VAT
17
Guard
813333
Not Available
18
Inner tube
809493
Not Available
19
Tyre
811816
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
