Speedometer for GILERA PIAGGIO VESPA Eaglet automatic from 1998

Speedometer

1

Speed.kms

463164

Not Available

2

Bracket

463157

Not Available

3

Lamp

071632

Not Available

4

Lampholder

292806

Not Available

5

screw

008437

$0,37 Unit Price incl. VAT

6

Spring washer 8,5x5,1x1,5

016405

$0,08 Unit Price incl. VAT

7

Nut

020105

$0,25 Unit Price incl. VAT

8

Bracket

463163

Not Available

9

Pad

463167

Not Available

10

Spacer

463168

Not Available

11

Washer

006126

$2,81 Unit Price incl. VAT

12

Hex screw

031060

$2,95 Unit Price incl. VAT

13

Pad

463155

Not Available

14

Spacer

463153

Not Available

15

Hex screw

030039

$3,70 Unit Price incl. VAT

16

Washer

463174

Not Available

17

Nut

012112

$0,29 Unit Price incl. VAT

18

Fairlead

463154

Not Available

19

Washer

463174

Not Available

20

screw

463173

Not Available

21

Nut M8x6,5

012136

Not Available

22

Plain washer 5,4x10x0,8

003055

$0,08 Unit Price incl. VAT

23

Hose clamp

216983

$2,95 Unit Price incl. VAT

24

Inst. front. cover

292745

Not Available

25

Inst. front. cover

292746

Not Available

26

Self tapping screw

292823

Not Available

27

Speedom. transmiss.

563284

$17,03 Unit Price incl. VAT

28

Reset knob

292805

$5,36 Unit Price incl. VAT

29

Flat washer Ã˜5,3xÃ˜14x1

097733

$3,65 Unit Price incl. VAT

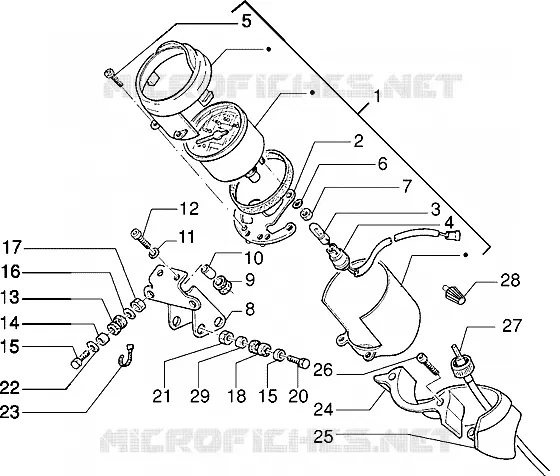

Find the detailed Speedometer GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
