1
Engine displacement
50
2
Model
TYPHOON
3
Year
2020
4
Trim
Typhoon 50 2T Euro 4
5
Parts Catalog
Stand/s
6

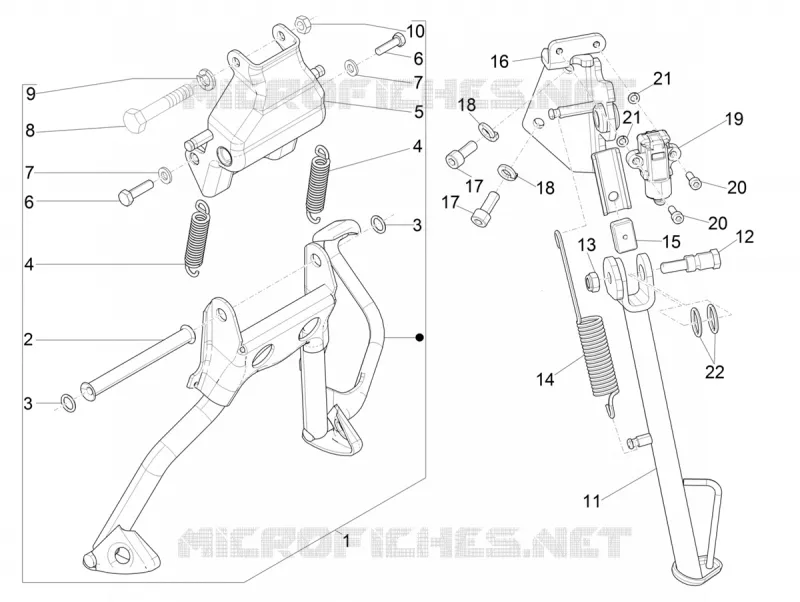

Parts Diagram
Parts Catalog
Carburettor, assembly - Union pipe
by
Helmet huosing - Undersaddle
Stand/s
1
1
2
3
3
4
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
20
21
21
22
1
Béquille complète
1C004396
$37,23 Unit Price incl. VAT
1
Béquille complète
1C003132
Not Available
2
Pin
583603
$2,17 Unit Price incl. VAT
3
Gasket ring
271695
$0,09 Unit Price incl. VAT
4
Spring
278940
$1,02 Unit Price incl. VAT
5
Maintenance
272929
$9,42 Unit Price incl. VAT
6
Hex screw M8x30
031122
$2,95 Unit Price incl. VAT
7
Plain washer 8,2x20x2,5
013861
$0,25 Unit Price incl. VAT
8
screw
030080
$3,65 Unit Price incl. VAT
9
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
10
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
11
Béquille latérale avec pièces internes
1C003129
Not Available
12
Pivot
1C003382
Not Available
13
Écrou auto-freiné M8
1C002807
Not Available
14
Ressort béquille
1C001871
$1,32 Unit Price incl. VAT
15
Stop buffer
582885
$5,53 Unit Price incl. VAT
16
Fixing bracket of later. stand with IP
1C003437
Not Available
17
Hex socket screw M5x16
292889
Not Available
18
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
19
Stand button
642559
Not Available
20
screw M8x20
599009
$3,65 Unit Price incl. VAT
21
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
22
Joint torique
1C003392
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
