Engine displacement
400
2
Model
BEVERLY
3
Year
2007
4
Trim
Beverly ie E3
5
Parts Catalog
Air filter
6
Parts Diagram
Parts Catalog
Silencer
by
Frame/bodywork
Air filter
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
10
10
9
8
7
6
5
4
3
2
1
1
Air cleaner, assy.
833084
Not Available
2
Hose clamp
260918
$1,68 Unit Price incl. VAT
2
Air filter
829258
Not Available
3
Filter cover gasket
829259
$14,30 Unit Price incl. VAT
3
Hose clamp
CM001913
$0,75 Unit Price incl. VAT
4
Carburettor-air box hose
849589
$28,44 Unit Price incl. VAT
4
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
5
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
5
Hose clamp
CM002910
$0,59 Unit Price incl. VAT
6
Air filter
829258
Not Available
7
Gasket
833917
$4,82 Unit Price incl. VAT
7
Filter cover gasket
829259
$14,30 Unit Price incl. VAT
7
Cover
833965
$6,52 Unit Price incl. VAT
8
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
8
Air intake hose
829543
$14,76 Unit Price incl. VAT
9
Hose clamp
CM001913
$0,75 Unit Price incl. VAT
9
Hose clip 35-33
830015
Not Available
10
Knurled bushing
830056
$0,34 Unit Price incl. VAT
12
Spacer
965502
$3,65 Unit Price incl. VAT
12
Intake hose
834710
Not Available
13
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
13
Spacer
965502
$3,65 Unit Price incl. VAT
14
Knurled bushing
830056
$0,34 Unit Price incl. VAT
14
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
15
Cap
827831
$2,60 Unit Price incl. VAT
15
Hose clamp
CM001907
$0,84 Unit Price incl. VAT
16
Oil breather pipe
840743
$3,60 Unit Price incl. VAT
16
Hose clip 35-33
830015
Not Available
17
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
18
screw
030052
$2,95 Unit Price incl. VAT
19
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
20
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
21
Screw m6x30
015761
$2,95 Unit Price incl. VAT
22
Washer 4,5x12x1
016670
$0,09 Unit Price incl. VAT
23
Special cap screw M6x50
018640
$0,16 Unit Price incl. VAT
24
Spring plate M6
254485
$0,34 Unit Price incl. VAT
25
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
26
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
26
Support clamp
833628
$5,38 Unit Price incl. VAT
27
Cover
833965
$6,52 Unit Price incl. VAT

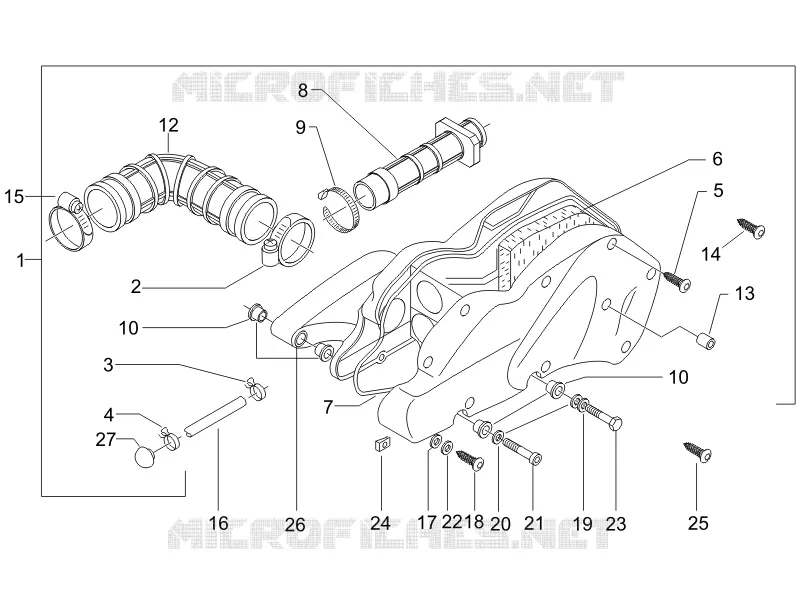

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
