1
Engine displacement
125
2
Model
HEXAGON
3
Year
1998
4
Trim
HEXAGON LX4
5
Parts Catalog
Carburettor
6

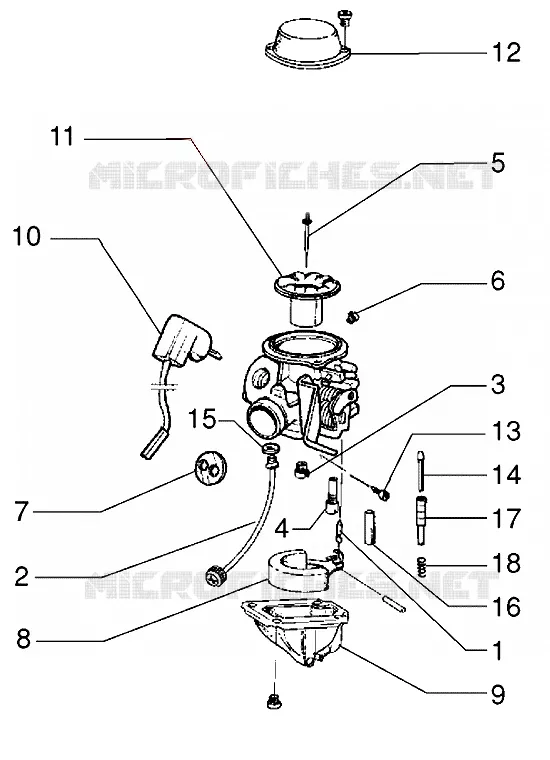

Parts Diagram
Parts Catalog
Carburettor
by
Air box
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
FLOAT NEEDLE 125 4T (NOT LEADER) U
478276
Not Available
2
Throttle transmiss.
478118
Not Available
3
Main jet
478275
Not Available
4
Idle jet
478274
Not Available
5
Conical pin
478272
Not Available
6
Starter jet
482354
Not Available
7
Valve
478270
Not Available
8
Float
478564
Not Available
9
Float chamber
478561
Not Available
10
Starter unit
478562
Not Available
11
Diaphragm
478560
$80,52 Unit Price incl. VAT
12
Cover
478559
Not Available
13
Adjusting screw
478563
Not Available
14
Rod
482357
Not Available
15
Washer
478589
Not Available
16
Cap
480506
Not Available
17
Piston
482836
$4,39 Unit Price incl. VAT
18
Spring
482835
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
