1
Engine displacement
125
2
Model
HEXAGON
3
Year
1999
4
Trim
HEXAGON LX4
5
Parts Catalog
Oil pump
6

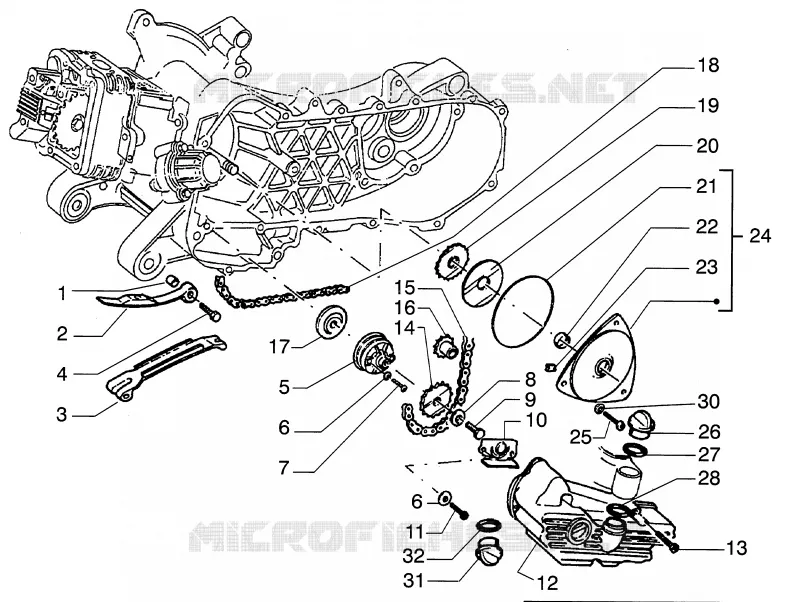

Parts Diagram
Parts Catalog
Oil filter
by
Wheel shaft
Oil pump
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
31
32
1
Spacer
478247
Not Available
2
Rod
410226
Not Available
3
Sliding block
436260
Not Available
4
Hex screw M6x18
031089
$2,99 Unit Price incl. VAT
5
Oil pump
436643
Not Available
6
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
7
screw
030251
$2,25 Unit Price incl. VAT
8
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
9
Screw w/ flange
436788
Not Available
10
Protection
436810
Not Available
11
Screw M5x10
018575
$2,95 Unit Price incl. VAT
12
SUMP
485692
Not Available
13
Screw w/ flange M6x25
414837
Not Available
14
Oil pump gear
287913
$6,47 Unit Price incl. VAT
15
Oil pump chain
434447
$11,51 Unit Price incl. VAT
16
Oil pump control pinion
478149
$12,69 Unit Price incl. VAT
17
Carter-oil pump gasket
436751
$4,89 Unit Price incl. VAT
18
Chain
436246
$16,43 Unit Price incl. VAT
19
Pinion
434442
$24,14 Unit Price incl. VAT
20
Washer
430535
$3,70 Unit Price incl. VAT
21
Gasket ring
434478
Not Available
22
SEAL RING
287963
Not Available
23
Oil pump chain drift
434345
$2,77 Unit Price incl. VAT
24
Timing system cover cpl.
478324
$34,40 Unit Price incl. VAT
25
Screw M5x16
015715
$2,25 Unit Price incl. VAT
26
Oil plug
479996
Not Available
27
Gasket
479985
$0,29 Unit Price incl. VAT
28
O-ring
479986
Not Available
30
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
31
Oil unload plug
436692
$4,82 Unit Price incl. VAT
32
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
