1
Engine displacement
500
2
Model
MP3
3
Year
2018
4
Trim
MP3 500 Business ABS E3-E4
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Reduction unit
by
Rear headlamps - Turn signal lamps

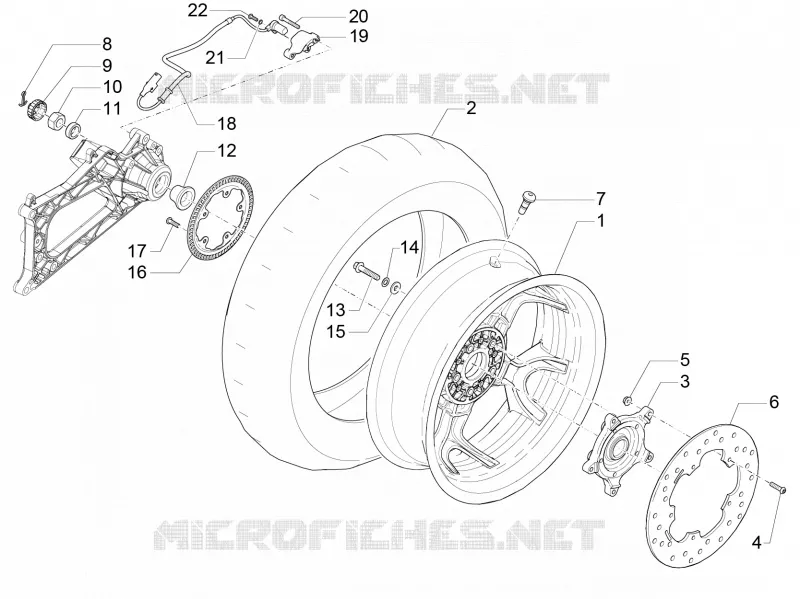

Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Rear wheel 4.50x"14"
2B000902
$388,80 Unit Price incl. VAT
1
Rear wheel 4.50x"14"
2B000641
Not Available
1
Rear wheel 4.50x14"
1C002674
$388,80 Unit Price incl. VAT
1
Rear wheel 4.50 x 14"
1C003638
$388,80 Unit Price incl. VAT
2
(Michelin) Tyre 140/70-14"
666330
Not Available
3
Rear wheel hub
647789
$96,83 Unit Price incl. VAT
4
Bolt
274370
$0,17 Unit Price incl. VAT
5
Self locking nut
597565
$0,50 Unit Price incl. VAT
6
Brake disc d.240
668825
$233,55 Unit Price incl. VAT
7
Tubeless valve
597679
$3,03 Unit Price incl. VAT
8
Split pin
012789
$0,16 Unit Price incl. VAT
9
Nut hold cap
194423
$0,48 Unit Price incl. VAT
10
Nut M16x13
563728
$1,42 Unit Price incl. VAT
11
Spacer
597528
$1,51 Unit Price incl. VAT
12
Wheel spacer
848039
$18,12 Unit Price incl. VAT
13
Screw w/ flange M8x40
B016806
$0,48 Unit Price incl. VAT
14
Spring washer
709047
$0,08 Unit Price incl. VAT
15
Washer
246976
$1,84 Unit Price incl. VAT
16
Phonic wheel
2B000624
$28,21 Unit Price incl. VAT
17
screw torx
623920
$3,70 Unit Price incl. VAT
18
ABS rear sensor
B000526
$188,29 Unit Price incl. VAT
19
Sensor support ABS
2B000634
$106,52 Unit Price incl. VAT
20
Screw m6x40
018564
$3,65 Unit Price incl. VAT
21
Flat washer
669282
$1,43 Unit Price incl. VAT
22
Torx convex big end screw M5x16
B0167965
$0,16 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
