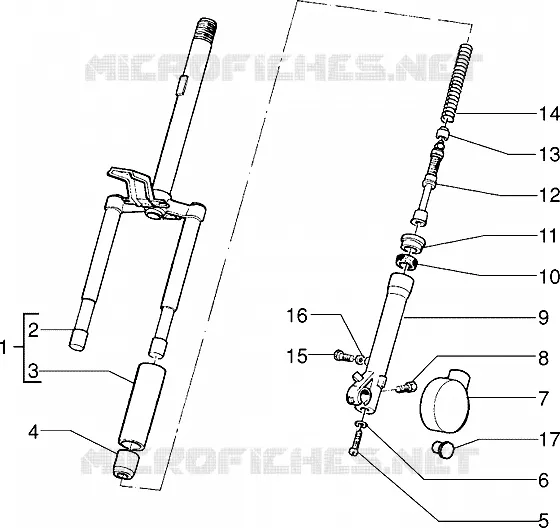

Steering column
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Front fork
560248
Not Available
1
Front fork
564712000D
Not Available
1
Front fork
563014
Not Available
1
Front fork
497003
Not Available
1
Not available
564724
Not Available
1
Front fork
5611184
Not Available
2
Front fork
271816
Not Available
3
Sleeve
563851000D
Not Available
3
Sleeve
563825000D
Not Available
3
Sleeve
270852
Not Available
3
Sleeve
563069
Not Available
4
Pad
271506
Not Available
5
Low head socket screw M6x30
122637
$0,28 Unit Price incl. VAT
6
Gasket
124896
Not Available
7
Cover
563071
Not Available
7
Cover
563070
Not Available
7
Cover
274388
Not Available
7
Cover
269700
Not Available
7
Cover
269701
Not Available
8
screw
268298
Not Available
9
Sleeve
2728655
Not Available
9
Sleeve
2728645
Not Available
9
Leg
5611205
Not Available
9
Leg
5611195
Not Available
10
Ring
269603
Not Available
11
Bushing
271505
Not Available
12
Rod
273608
Not Available
13
Bushing
269692
Not Available
14
Spring
271528
$3,17 Unit Price incl. VAT
15
Oil plug
138345
$0,29 Unit Price incl. VAT
16
Gasket
000397
Not Available
17
Cover
228994
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
