1
Engine displacement
400
2
Model
BEVERLY
3
Year
2006
4
Trim
Beverly ie E3
5
Parts Catalog

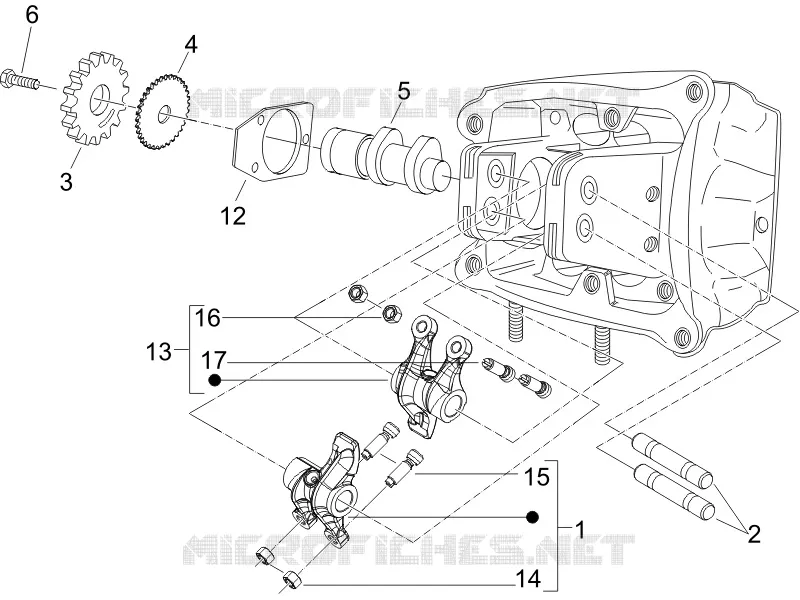

Rocking levers support unit
6
Parts Diagram
Parts Catalog
Head unit - Valve
by
Cylinder head cover
Rocking levers support unit
1
2
3
4
5
6
12
13
14
15
16
17
1
Rocker arm exhaust
826028
Not Available
2
Rocker shaft
827991
$3,78 Unit Price incl. VAT
3
Timing system gear
829198
Not Available
4
Phonic wheel
829211
$7,94 Unit Price incl. VAT
5
Camshaft
845411
Not Available
5
Camshaft with U.P. x ricambi
8725265
$185,98 Unit Price incl. VAT
6
Hex socket screw
844211
Not Available
6
Hex socket screw M5x30
018538
Not Available
12
Plate
831167
$1,60 Unit Price incl. VAT
13
Rocker arm inlet
826027
Not Available
14
Nut
484819
$0,24 Unit Price incl. VAT
15
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
16
Nut
484819
$0,24 Unit Price incl. VAT
17
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
