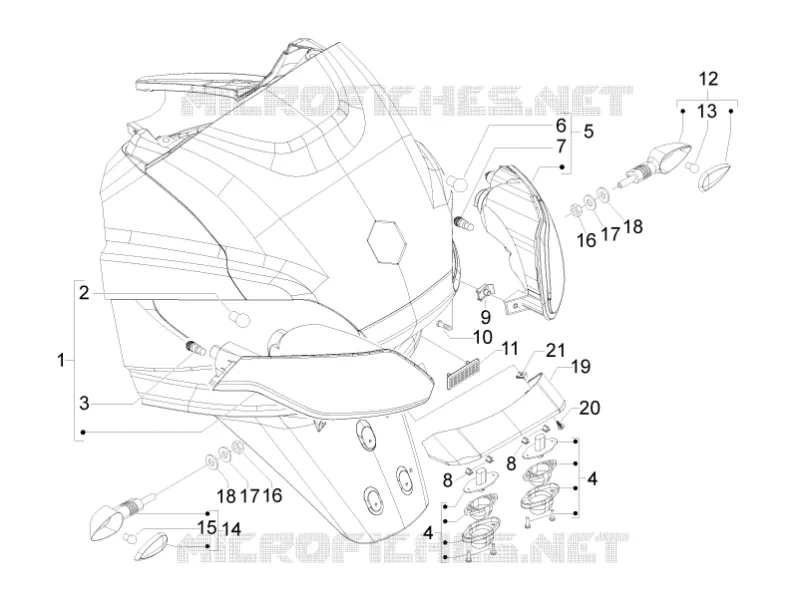

Rear headlamps - Turn signal lamps
1
2
3
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
16
17
17
18
18
19
20
21
1
Complete left rear light
642295
Not Available
1
Tail lamp assembly l.h.
642793
$34,78 Unit Price incl. VAT
2
Lamp 12V-21/5W
129953
$7,81 Unit Price incl. VAT
3
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
4
Rear licence plate light
D8127087Z01
$13,37 Unit Price incl. VAT
5
Tail lamp assembly r.h.
642792
Not Available
6
Lamp 12V-21/5W
129953
$7,81 Unit Price incl. VAT
7
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
8
Expansion plug
199190
$2,95 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
11
Reflector
638745
$7,02 Unit Price incl. VAT
12
Right rear and left front turn indicators
640244
Not Available
13
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
14
Left rear and right front turn indicators
640245
Not Available
15
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
16
Nut
021210
$0,16 Unit Price incl. VAT
17
Washer
012535
$0,08 Unit Price incl. VAT
18
Plain washer 10,4x18x2
016626
$0,08 Unit Price incl. VAT
19
License plate light support
655817
$5,64 Unit Price incl. VAT
20
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
21
Spring plate
CM017410
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
