Flywheel magneto cover - Oil filter for MP3 500 Sport from 2015

Flywheel magneto cover - Oil filter

1

Complete flywheel cover

B0174635

$444,15 Unit Price incl. VAT

2

Flywheel housing cover gasket

872914

$17,25 Unit Price incl. VAT

3

Plug M12x1,5

411311

$0,67 Unit Price incl. VAT

4

Breather pipe

829047

$2,57 Unit Price incl. VAT

5

O-ring

237553

$1,36 Unit Price incl. VAT

6

Screw M5x16

015715

$2,25 Unit Price incl. VAT

7

Reed valve support

82778R

$12,01 Unit Price incl. VAT

8

Valve tightening plate with U.P.

876060

$6,38 Unit Price incl. VAT

9

screw M5x10

433800

$0,19 Unit Price incl. VAT

10

Water outlet pipe

871795

$1,03 Unit Price incl. VAT

11

Oil pressure valve

829661

$6,44 Unit Price incl. VAT

12

Spring

829486

$4,82 Unit Price incl. VAT

13

Oil filter union

829122

$4,13 Unit Price incl. VAT

14

Timing plug assembly

8290405

$10,28 Unit Price incl. VAT

15

O-ring

479986

Not Available

16

Washer 10,5x17x1,5

AP9150472

$4,82 Unit Price incl. VAT

17

Oil pressure sensor

641541

Not Available

18

Water pump shaft assy.

872536

$29,47 Unit Price incl. VAT

19

Flat washer 22x12,1x1

274246

$0,34 Unit Price incl. VAT

20

Gasket ring

873934

Not Available

21

Gasket ring

82991R

$24,39 Unit Price incl. VAT

22

Water pump impeller cpl.

827929

Not Available

23

Oil plug rod

874707

$14,97 Unit Price incl. VAT

24

O-ring

479986

Not Available

25

Hose clamp

CM002901

$0,09 Unit Price incl. VAT

26

Oil filter

82960R

$14,99 Unit Price incl. VAT

27

Piping retainer clamp

849825

$4,82 Unit Price incl. VAT

28

Hose clamp

845978

$5,63 Unit Price incl. VAT

29

Spring

641201

$4,82 Unit Price incl. VAT

30

screw M6x35

414838

$0,67 Unit Price incl. VAT

31

Screw w/ flange M6x25

B016774

$0,34 Unit Price incl. VAT

32

Screw m6x70

434429

$0,60 Unit Price incl. VAT

33

Screw w/ flange M6x50

B016775

$0,42 Unit Price incl. VAT

34

Oil filter

826033

$13,61 Unit Price incl. VAT

35

O-ring 20,35x1,78

288474

$0,08 Unit Price incl. VAT

36

O-ring 31,47x1,78

285536

$0,92 Unit Price incl. VAT

37

Oil filter plug

826165

$5,88 Unit Price incl. VAT

38

Bracket

1A002535

$8,91 Unit Price incl. VAT

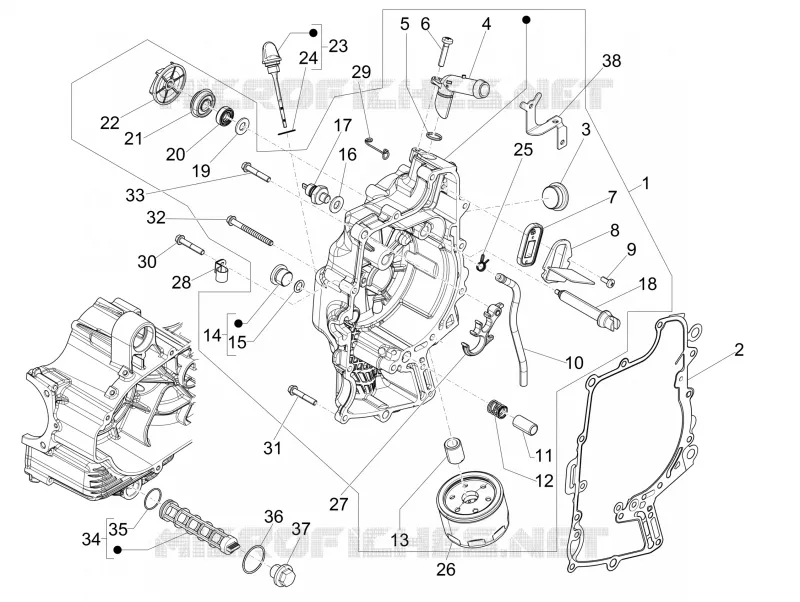

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
