1
Engine displacement
180
2
Model
DNA
3
Year
0
4
Trim
DNA 180
5
Parts Catalog
Fork
6

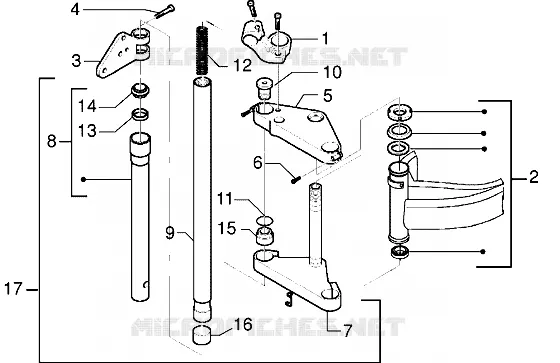

Parts Diagram
Parts Catalog
Saddle-Tail
by
Swinging arm
Fork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Maintenance
970001
Not Available
1
Maintenance
970000
$80,65 Unit Price incl. VAT
2
Steering bear. assy.
5971885
Not Available
3
Maintenance
564929
Not Available
3
Maintenance
564928
Not Available
4
screw
970273
$0,27 Unit Price incl. VAT
5
plate
970002
Not Available
6
screw
597150
$3,65 Unit Price incl. VAT
7
plate
497050
Not Available
8
Sleeve
497049
Not Available
8
Sleeve
497048
Not Available
9
Sleeve
497167
Not Available
9
Sleeve
497055
Not Available
10
Cover
497053
Not Available
11
O-ring
598194
Not Available
12
Spring
497056
Not Available
13
Ring
598190
$13,76 Unit Price incl. VAT
14
Dust cover ring
598191
Not Available
15
Spacer
497057
Not Available
16
Pad
497071
Not Available
17
Front fork
597416
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
