Engine displacement
50
2
Model
FLY
3
Year
2006
4
Trim
Fly 4T
5
Parts Catalog
Cylinder-piston-wrist pin unit
6

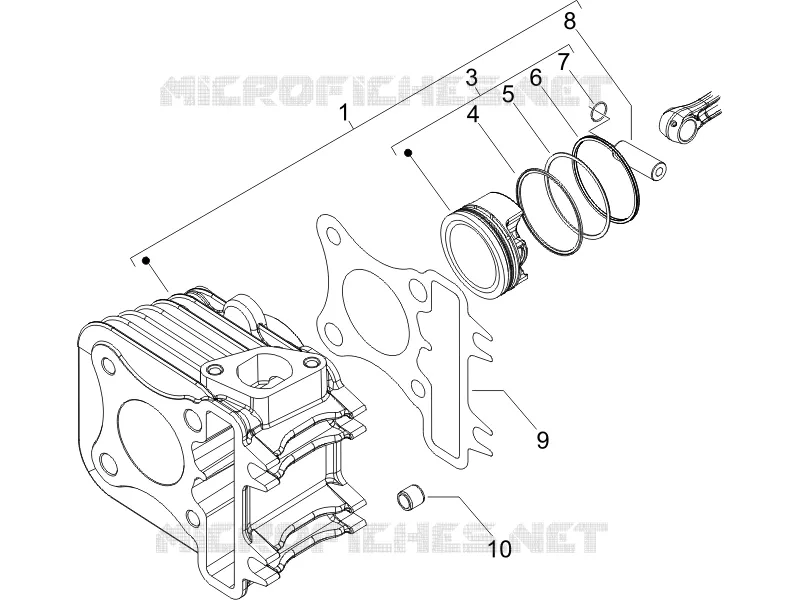

Parts Diagram
Parts Catalog
Crankshaft
by
Head unit - Valve
Cylinder-piston-wrist pin unit
1
3
4
5
6
8
9
10
1
Cylinder with piston
969603
$139,26 Unit Price incl. VAT
3
Piston assy Cat.A
9696045001
Not Available
3
Piston assy Cat.C
9696045003
$21,65 Unit Price incl. VAT
3
Piston assy
969619
Not Available
3
Piston assy Cat.B
9696045002
$21,65 Unit Price incl. VAT
3
Piston assy
969617
Not Available
3
Piston assy
969618
Not Available
3
Piston assy Cat.D
9696045004
$21,65 Unit Price incl. VAT
4
Gasket ring
969608
Not Available
4
Gasket ring
969611
Not Available
4
Gasket ring
969614
Not Available
4
Ring
969682
Not Available
4
Ring
969215
$6,44 Unit Price incl. VAT
5
Gasket ring
969612
Not Available
5
Gasket ring
969609
Not Available
5
Gasket ring
969615
Not Available
5
Ring
969216
$6,44 Unit Price incl. VAT
5
Ring
969681
Not Available
6
Scraper ring
969613
Not Available
6
Scraper ring
969610
Not Available
6
Oil scraper ring
969683
Not Available
6
Scraper ring
969616
Not Available
6
Oil scraper ring
969217
$9,32 Unit Price incl. VAT
8
Piston pin
969214
$4,38 Unit Price incl. VAT
9
Cylinder base gasket 0,5
969230
$1,26 Unit Price incl. VAT
10
Pin 6,5x9,5x15
239388
Not Available
