Oil pump for Liberty 4T Sport E3 from 2006

Oil pump

1

Oil pump assembly

844352

Not Available

1

Oil pump assembly

82877R

Not Available

2

Carter-oil pump gasket

486082

$0,29 Unit Price incl. VAT

2

Carter-oil pump gasket

847929

$0,34 Unit Price incl. VAT

3

Screw w/ flange M5x35

829593

$0,50 Unit Price incl. VAT

4

Motor oil cup

843761

$13,95 Unit Price incl. VAT

5

Sump gasket

830128

$2,77 Unit Price incl. VAT

6

Screw w/ flange M6x30

289731

Not Available

7

Retainer clamp

487824

$0,33 Unit Price incl. VAT

8

Oil plug assembly

843364

$1,39 Unit Price incl. VAT

9

O-ring

479986

Not Available

10

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

11

Timing system cover

847116

$22,74 Unit Price incl. VAT

11

Timing system cover

483775

$16,82 Unit Price incl. VAT

12

Oil pump chain drift

434345

$2,77 Unit Price incl. VAT

13

Gasket ring

82538R

$8,01 Unit Price incl. VAT

14

Gasket ring

825620

$8,21 Unit Price incl. VAT

15

Self-tapping screw

018623

Not Available

15

Self-tapping screw M5x12

015585

$0,08 Unit Price incl. VAT

16

Plain washer

487937

$0,09 Unit Price incl. VAT

17

Complete chain tensioner

82650R

$34,52 Unit Price incl. VAT

18

Guarnizione cilindro/tendicatena

847928

$0,42 Unit Price incl. VAT

19

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

20

Chain tensioner rod spacer

485868

$0,29 Unit Price incl. VAT

21

Screw w/ flange M6x25

414837

Not Available

22

Chain tensioner rod

840510

$2,15 Unit Price incl. VAT

23

Chain tensioner sliding block

828308

$1,34 Unit Price incl. VAT

24

Oil seal washer

483918

$0,53 Unit Price incl. VAT

25

O-Ring seal ring

825952

$0,15 Unit Price incl. VAT

26

Camshaft chain

82643R

$44,55 Unit Price incl. VAT

27

Timing chain pinion

82782R

$7,06 Unit Price incl. VAT

28

Oil pump chain

82649R

$13,37 Unit Price incl. VAT

29

Oil pump control pinion

82783R

$7,99 Unit Price incl. VAT

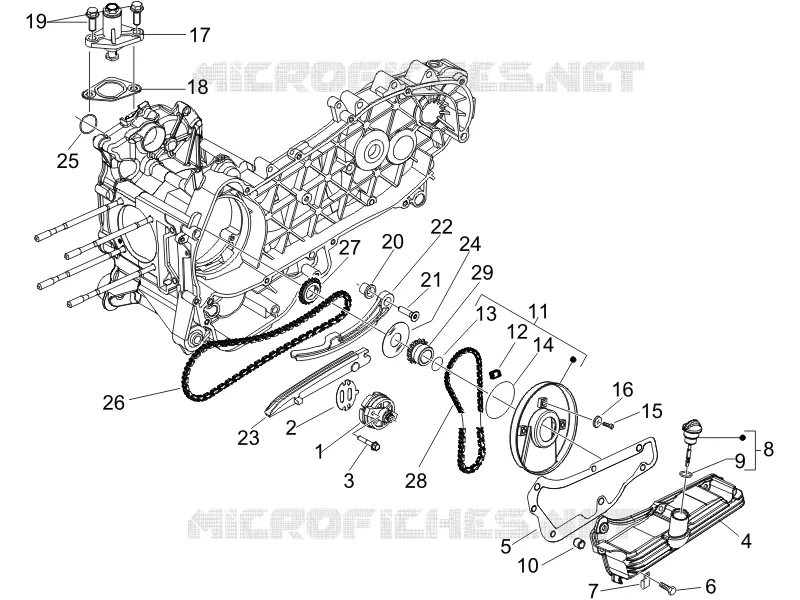

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
