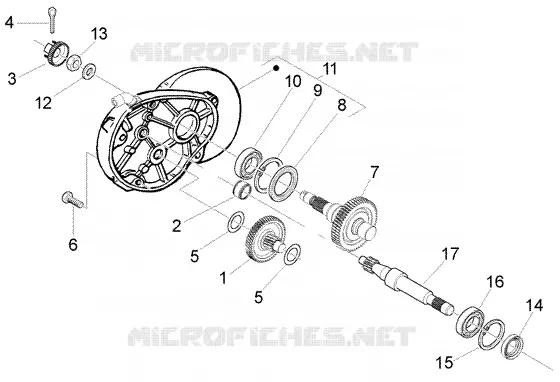

Rear wheel shaft
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Counter shaft
8438685
$92,86 Unit Price incl. VAT
2
Compensator ring
478197
$8,31 Unit Price incl. VAT
3
Nut hold cap
194423
$0,48 Unit Price incl. VAT
4
Split pin
012789
$0,16 Unit Price incl. VAT
5
Shim washer
288639
$2,99 Unit Price incl. VAT
6
Screw w/ flange M8x45
487211
$0,29 Unit Price incl. VAT
7
Wheel axle
8438705
$58,64 Unit Price incl. VAT
8
Gasket ring
478498
$8,12 Unit Price incl. VAT
9
Circlip
006647
$1,10 Unit Price incl. VAT
10
Bearing 20x47x14
434735
$7,12 Unit Price incl. VAT
11
Side cover
8334985
Not Available
12
Ring
159347
$0,48 Unit Price incl. VAT
13
Nut M16x13
563728
$1,42 Unit Price incl. VAT
14
Gasket ring
480066
$5,99 Unit Price incl. VAT
15
Snap ring
480953
$3,70 Unit Price incl. VAT
16
Bearing
942135
Not Available
17
Driven pulley shaft
4808485
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
