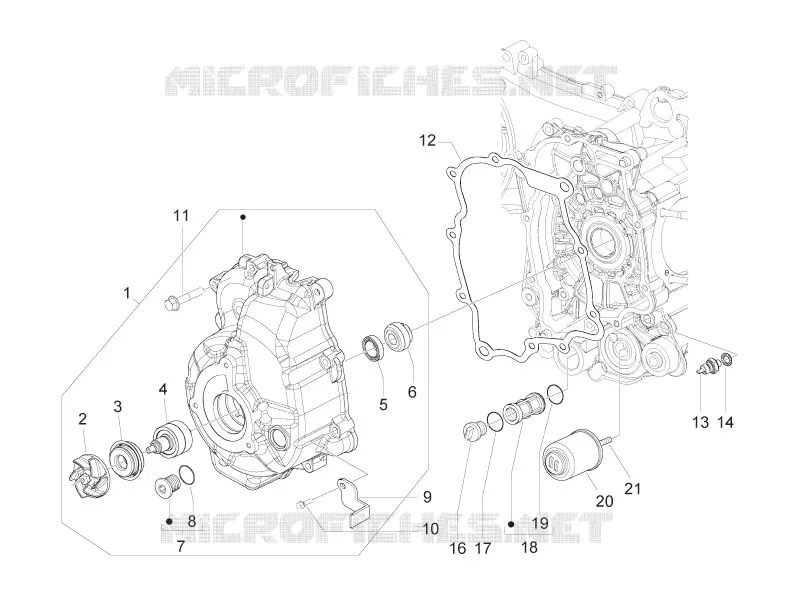

Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
21
1
Flywheel cover cpl.
8483785
Not Available
1
Flywheel cover cpl.
879831
Not Available
2
Water pump impeller cpl.
844730
$3,01 Unit Price incl. VAT
3
Gasket ring
82991R
$24,39 Unit Price incl. VAT
3
Gasket ring
842595
Not Available
4
Water pump shaft assy.
8447595
$54,95 Unit Price incl. VAT
5
Gasket ring 20x30x5
82897R
$4,36 Unit Price incl. VAT
6
Pump impeller drive key
842389
$5,64 Unit Price incl. VAT
7
Timing plug assembly
8290405
$10,28 Unit Price incl. VAT
8
O-ring
479986
Not Available
9
Lambda probe plate
641551
$3,40 Unit Price incl. VAT
10
screw
844160
Not Available
11
screw M6x35
414838
$0,67 Unit Price incl. VAT
12
Flywheel housing cover gasket
840504
$2,91 Unit Price incl. VAT
13
Oil pressure sensor
641541
Not Available
14
Washer 10.5X16X2.5
486075
$1,58 Unit Price incl. VAT
16
Oil filter plug
826165
$5,88 Unit Price incl. VAT
17
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
18
Intake oil filter
843568
$14,92 Unit Price incl. VAT
19
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
20
Oil filter
82635R
$12,36 Unit Price incl. VAT
21
Oil filter special screw
840507
$10,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
