Engine displacement
300
2
Model
BEVERLY
3
Year
2014
4
Trim
BEVERLY RST/S 4T 4V IE E3
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Engine, assembly
by
Fork/steering tube - Steering bearing unit
Cooling system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Water cooler
656528
$77,93 Unit Price incl. VAT
2
Electric fan assy.
58211R
$69,69 Unit Price incl. VAT
3
Fan shroud
672464
$5,38 Unit Price incl. VAT
4
Pump-radiator pipe fitting
676102
$19,32 Unit Price incl. VAT
4
Radiator pump connection pipe
657489
$30,22 Unit Price incl. VAT
5
Radiator big end connection pipe
57349R
$30,50 Unit Price incl. VAT
6
Coolant tank
656807
$33,81 Unit Price incl. VAT
7
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
8
Cooler-tank return pipe
CM007017
$29,51 Unit Price incl. VAT
8
Cooler-tank return pipe
CM007015
$24,90 Unit Price incl. VAT
9
Water rad.feed pipe
CM007018
$17,07 Unit Price incl. VAT
9
Cooler-tank return pipe
CM007016
Not Available
10
screw M6x25
CM179305
$0,25 Unit Price incl. VAT
11
Washer d6,2x20x1
013092
$0,17 Unit Price incl. VAT
12
Upper rubber
351782
$0,34 Unit Price incl. VAT
13
Spacer
273288
$1,01 Unit Price incl. VAT
14
Lower rubber
258904
$0,25 Unit Price incl. VAT
15
Spring plate M6
254485
$0,34 Unit Price incl. VAT
16
screw M6x25
CM179305
$0,25 Unit Price incl. VAT
17
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
18
Spring plate M6
254485
$0,34 Unit Price incl. VAT
19
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
20
Hose clamp
CM001902
Not Available
21
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
22
Hose clamp
CM001915
$1,03 Unit Price incl. VAT
23
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
24
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
25
Hose clamp
CM001922
$3,65 Unit Price incl. VAT

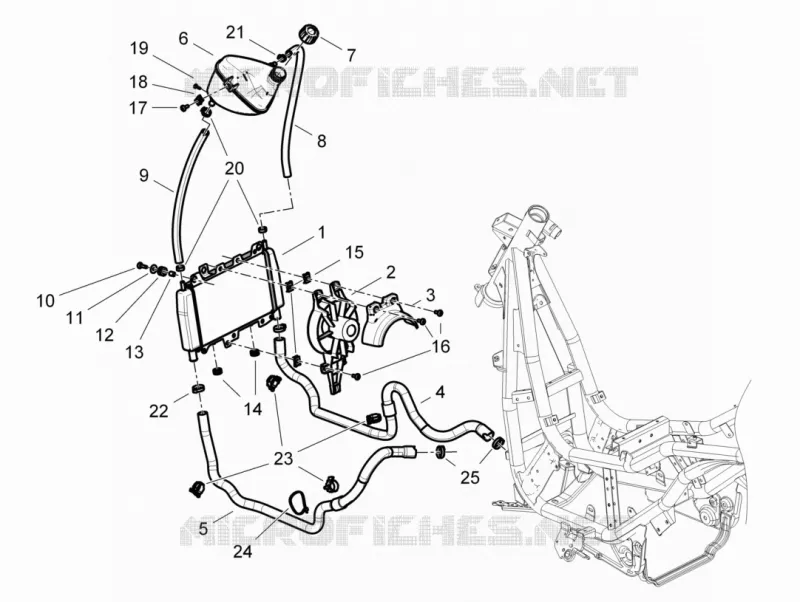

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
