Crankcase for GILERA PIAGGIO VESPA Beverly Tourer E3 from 2009

Crankcase

1

Crank-case

8462875001

Not Available

1

Crank-case

8462875002

Not Available

2

Pin 6,5x9,5x15

239388

Not Available

3

Plug M12x1,5

411311

$0,67 Unit Price incl. VAT

4

UGELLO CALIBRATO

484034

$6,44 Unit Price incl. VAT

5

Pin 6,5x9,5x15

239388

Not Available

6

Radial ball bearing 15x42x13

485912

Not Available

7

Radial ball bearing 20x47x14

833701

Not Available

8

PERNO AGG. MOLLE CAVALLETTO

483785

$5,45 Unit Price incl. VAT

9

SILENTBLOC ATT.MOTORE

486081

$6,73 Unit Price incl. VAT

10

Stud bolt

840332

Not Available

11

Circlip 25x26.9x1.2

000674

Not Available

12

Gasket ring

82539R

Not Available

12

ANELLO DI TENUTA 20-32-7

82878R

$10,25 Unit Price incl. VAT

13

Locating dowel Ã˜11x10

478115

$0,24 Unit Price incl. VAT

14

UGELLO CALIBRATO PER CARTER D.1,1

844582

$0,05 Unit Price incl. VAT

15

screw M6x60

432142

$0,19 Unit Price incl. VAT

16

Half crankcase gasket

845212

Not Available

16

GUARNIZIONE SEMICARTER

875111

$3,34 Unit Price incl. VAT

17

PARATIA OLIO SUPERIORE

485047

$0,48 Unit Price incl. VAT

18

VITE A TESTA ESAGONALE FLANGIATA

830061

$0,34 Unit Price incl. VAT

19

ASTA LIVELLO OLIO COMPL.

832130

$2,94 Unit Price incl. VAT

20

ANELLO DI TENUTA (O-RING)

827085

$2,99 Unit Price incl. VAT

21

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

22

Screw M5x10

018575

$2,95 Unit Price incl. VAT

23

PARATIA OLIO

483767

$0,38 Unit Price incl. VAT

24

VALVOLA REGOL.PRESSIONE OLIO

829661

$6,44 Unit Price incl. VAT

25

MOLLA VALVOLA PRESS.OLIO

485655

$1,26 Unit Price incl. VAT

26

INSERTO PORTA FILTRO COMPL.

845861

$3,82 Unit Price incl. VAT

27

GUARNIZIONE SEZ.CIRCOLARE

431065

$0,42 Unit Price incl. VAT

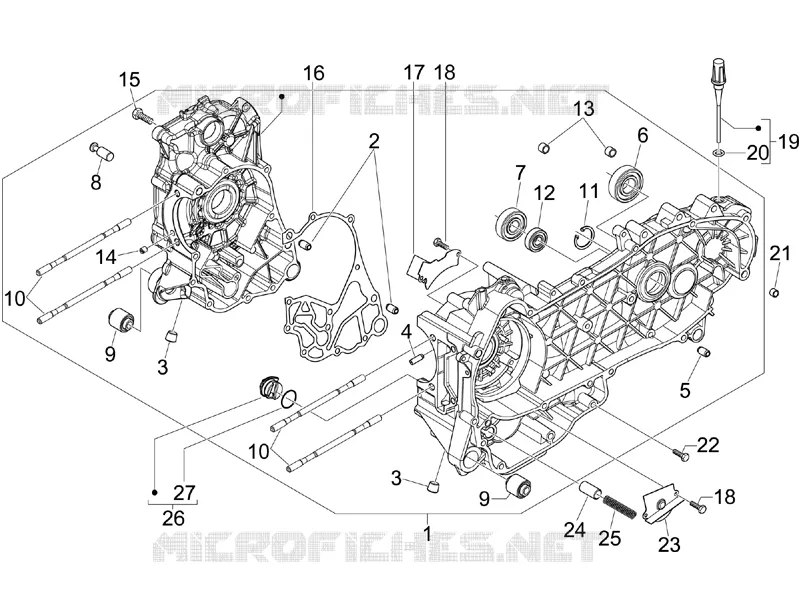

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
