Engine displacement
350
2
Model
BV
3
Year
2017
4
Trim
BV ST 4T 4V ie E4 ABS
5
Parts Catalog
Frame/bodywork
6
Parts Diagram
Parts Catalog
Driven pulley
by
Air filter
Frame/bodywork
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
15
16
16
1
Not available
1B0037425
$932,85 Unit Price incl. VAT
2
Lock support
575357
$24,90 Unit Price incl. VAT
3
Pin r.h.
6574965
$31,21 Unit Price incl. VAT
4
Pin l.h.
6574955
Not Available
5
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
6
Pipes connection cross pin
673000
$21,37 Unit Price incl. VAT
7
Screw m8x18 zn
031117
$0,19 Unit Price incl. VAT
8
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
9
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
10
Small carrier connector front pipe
6724355
$22,29 Unit Price incl. VAT
11
Screw m8x18 zn
031117
$0,19 Unit Price incl. VAT
12
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
13
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
14
Rear frame
657193R5
$26,74 Unit Price incl. VAT
15
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
16
Washer
078307
$0,17 Unit Price incl. VAT

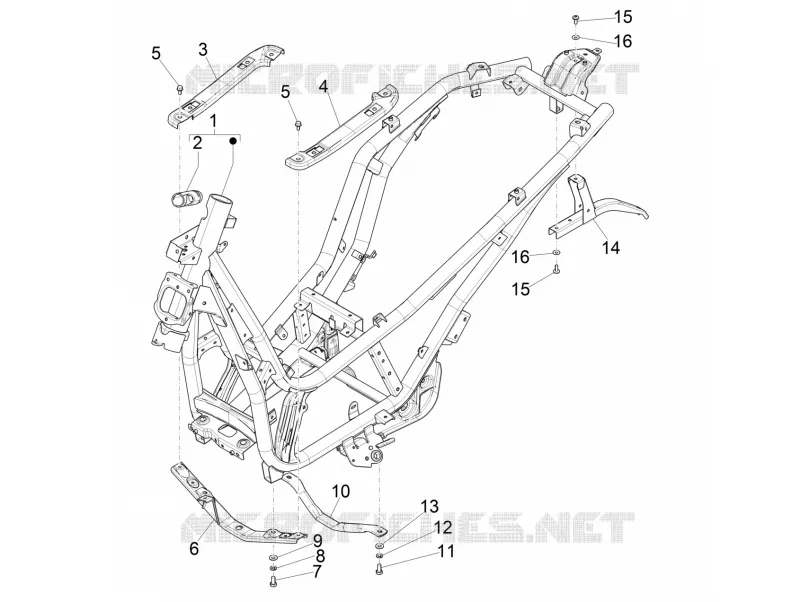

Find the detailed Frame/bodywork GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
