1
Engine displacement
250
2
Model
BEVERLY
3
Year
2006
4
Trim
Beverly ie Sport E3
5
Parts Catalog
Locks
6

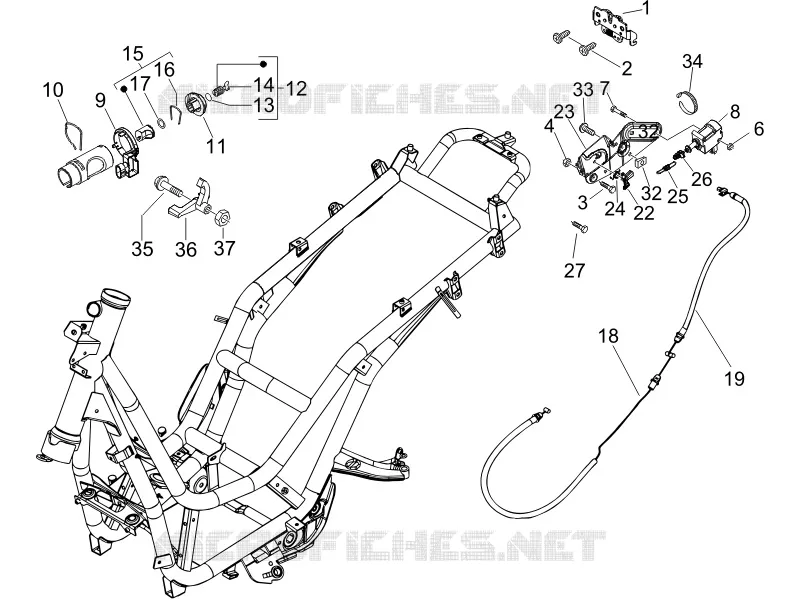

Parts Diagram
Parts Catalog
Driving mirror/s
by
Fuel tank
Locks
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
17
18
19
22
23
24
25
26
32
32
33
34
35
36
37
1
Saddle/flap tightening
CM023704
$24,03 Unit Price incl. VAT
2
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
3
Special screw
299972
$0,50 Unit Price incl. VAT
4
Self locking nut
577620
$0,08 Unit Price incl. VAT
6
Self locking nut
577620
$0,08 Unit Price incl. VAT
7
Hexagonal-head screw
584121
$0,34 Unit Price incl. VAT
8
Solenoid valve
582990
Not Available
9
Immobilizer antenna
638534
Not Available
9
Immobilizer antenna
1D001331
Not Available
10
Spring
253937
$0,25 Unit Price incl. VAT
11
Lock body
298581
Not Available
12
Cylinder set
576825
$137,64 Unit Price incl. VAT
13
Gasket ring
298731
$0,25 Unit Price incl. VAT
14
Hewn key with transponder
575810
$55,57 Unit Price incl. VAT
15
Block
577816
$20,60 Unit Price incl. VAT
16
Cylinder retainer spring
298838
$0,51 Unit Price incl. VAT
17
Flat washer
298594
$1,01 Unit Price incl. VAT
18
Emergency opening transmission
CM012804
$8,51 Unit Price incl. VAT
19
Saddle cable
CM012808
$8,51 Unit Price incl. VAT
22
Lever
577129
$1,43 Unit Price incl. VAT
23
Saddle lock plate
577130
$5,35 Unit Price incl. VAT
24
Spring
577131
$4,82 Unit Price incl. VAT
25
Spring
620415
$4,82 Unit Price incl. VAT
26
Joint
577128
$1,01 Unit Price incl. VAT
32
Spring plate
CM017410
$0,34 Unit Price incl. VAT
33
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
34
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
35
Special screw
299972
$0,50 Unit Price incl. VAT
36
Lock lever
576629
$5,38 Unit Price incl. VAT
37
Self locking nut
577620
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
