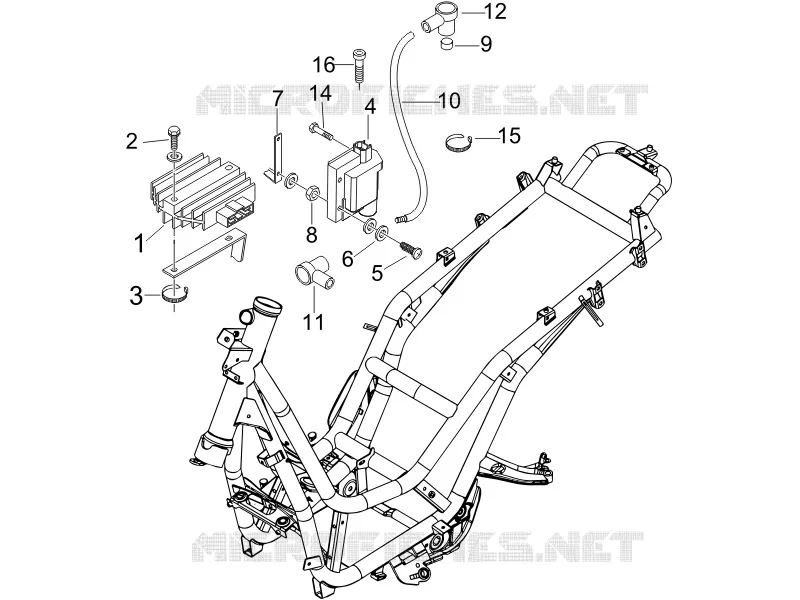

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
1
Voltage regulator
58086R
Not Available
2
screw M6x35
414838
$0,67 Unit Price incl. VAT
2
Screw w/ flange M6x30
289731
Not Available
3
Hose clamp
573918
$1,09 Unit Price incl. VAT
4
HT coil
58120R
$65,76 Unit Price incl. VAT
5
screw M3x20
583236
$3,70 Unit Price incl. VAT
6
Washer 3.2x5.7x0.9
012554
$1,56 Unit Price incl. VAT
7
Support clamp
624188
$1,43 Unit Price incl. VAT
8
Nut M 3
020003
$2,27 Unit Price incl. VAT
9
Spark plug prot.collar
828210
Not Available
10
H.V. cable
080341
$5,89 Unit Price incl. VAT
11
End cap
015014
$4,82 Unit Price incl. VAT
12
Screened cap
293845
$6,14 Unit Price incl. VAT
13
Insulating cap
071671
$1,29 Unit Price incl. VAT
14
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
15
Support clamp
581767
$0,38 Unit Price incl. VAT
16
screw M5x21
015856
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
