1
Engine displacement
250
2
Model
BEVERLY
3
Year
2007
4
Trim
Beverly ie E3
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Crankshaft
by
Fork/steering tube - Steering bearing unit

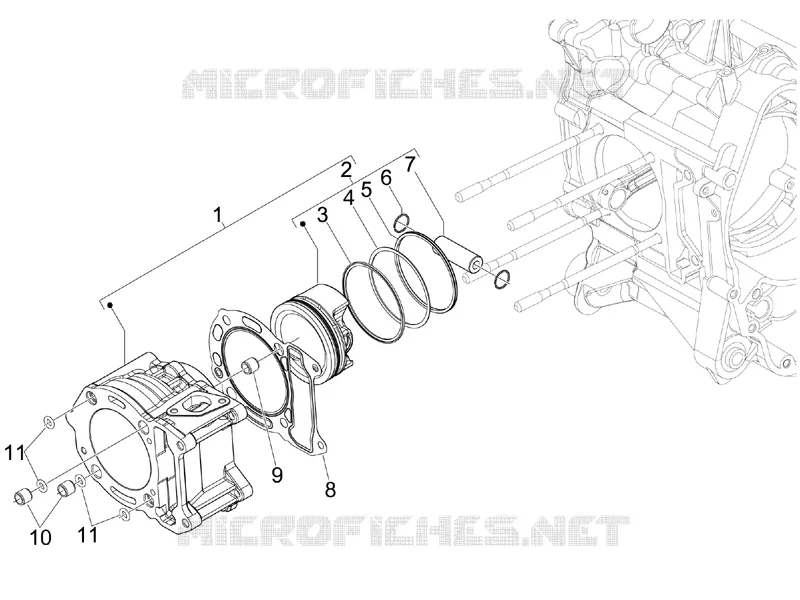

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
11
11
1
Cylinder with piston
843517
$232,14 Unit Price incl. VAT
2
Complete piston cat.D
8435190004
$89,82 Unit Price incl. VAT
2
Complete piston cat.B
8435190002
$89,82 Unit Price incl. VAT
2
Complete piston cat.A
8435190001
$117,75 Unit Price incl. VAT
2
Complete piston cat.C
8435190003
$90,56 Unit Price incl. VAT
3
Scraper ring 72x1
484908
$24,09 Unit Price incl. VAT
4
Scraper ring 72x2,5
486363
$25,62 Unit Price incl. VAT
5
Ring 72x1.5
830486
$34,62 Unit Price incl. VAT
6
Snap ring
963486
$0,05 Unit Price incl. VAT
7
Piston pin
829529
$8,12 Unit Price incl. VAT
8
Cylinder base gasket 0,6 mm
875113
$4,88 Unit Price incl. VAT
8
Cylinder base gasket 0,8 mm
828148
Not Available
8
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
828146
Not Available
9
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
10
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
11
O-ring
478184
Not Available
11
O-ring
B017342
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
