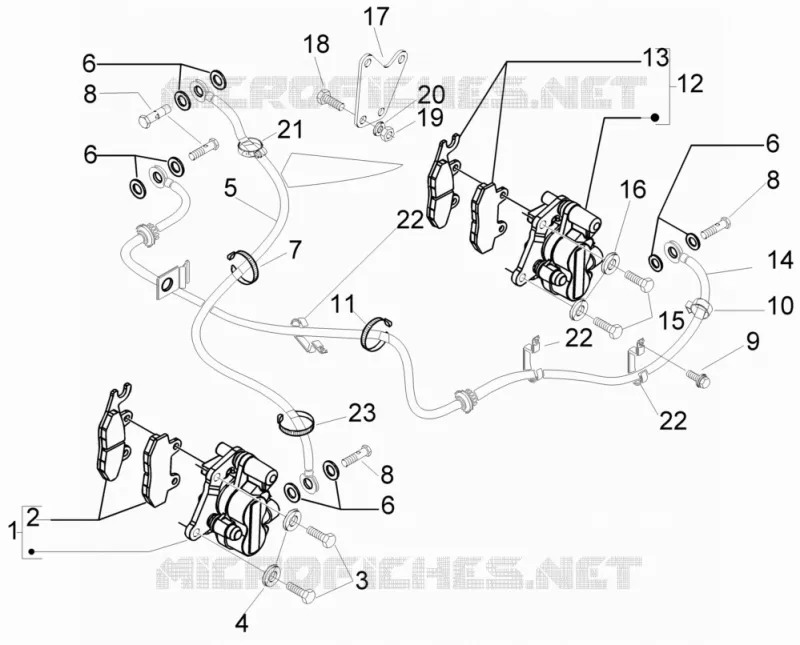

Brakes pipes - Calipers
1
2
3
4
5
6
6
6
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
1
Brake caliper Heng Tong
CM068301
Not Available
2
Brake pads couple Heng Tong
647078
$35,62 Unit Price incl. VAT
3
screw
598919
$2,27 Unit Price incl. VAT
4
Spring washer
709047
$0,08 Unit Price incl. VAT
5
PIPE FITTING
649194
$42,58 Unit Price incl. VAT
6
Gasket
127927
$0,25 Unit Price incl. VAT
7
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
8
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
9
Screw w/ flange M6x30
289731
Not Available
10
Non return spring L=12
CM006905
$1,35 Unit Price incl. VAT
11
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
12
Brake caliper Heng Tong
CM068301
Not Available
13
Brake pads couple Heng Tong
647078
$35,62 Unit Price incl. VAT
14
FLEXIBLE FRONT BRAKE HOSE
649193
$26,49 Unit Price incl. VAT
15
Hex socket screw
598920
$3,65 Unit Price incl. VAT
16
Spring washer
709047
$0,08 Unit Price incl. VAT
17
Brake caliper support plate
649417
$7,23 Unit Price incl. VAT
17
Bracket
597566
$7,23 Unit Price incl. VAT
18
screw
030074
$3,65 Unit Price incl. VAT
19
Self locking nut M8
195483
Not Available
20
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
21
Hose clamp
217280
Not Available
22
Hose clamp
597418
$3,65 Unit Price incl. VAT
23
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
