by

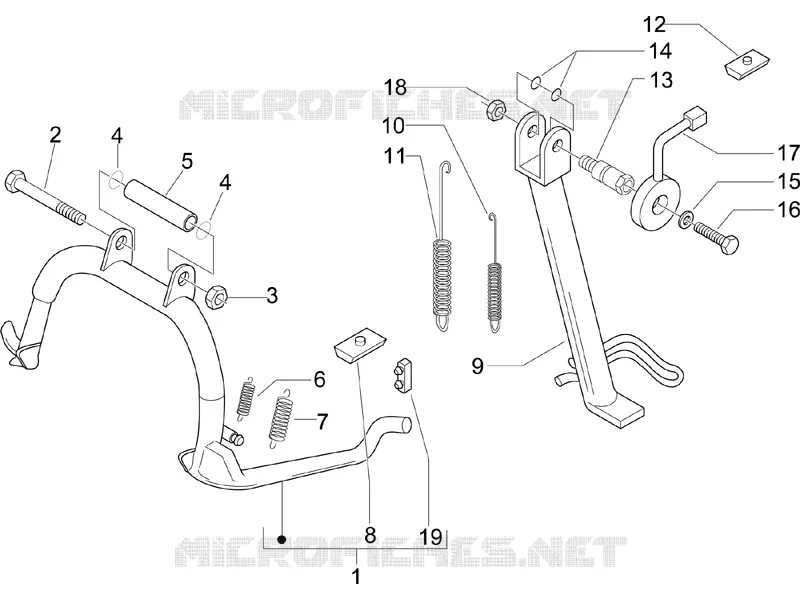

Stand/s
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
1
Central stand
583798
Not Available
1
Central stand
56262R
Not Available
2
Hex screw M10x130
030115
$1,85 Unit Price incl. VAT
3
Self locking nut M10
232108
Not Available
4
O-ring
273754
$0,16 Unit Price incl. VAT
5
Spacer
582298
$3,27 Unit Price incl. VAT
6
Internal lateral stand spring
582850
$4,89 Unit Price incl. VAT
7
Lateral stand spring
582851
$4,89 Unit Price incl. VAT
8
Pad
581560
$5,62 Unit Price incl. VAT
9
Lateral stand
582831
$42,39 Unit Price incl. VAT
9
Side Stand with i.p.
647472
$26,65 Unit Price incl. VAT
10
Spring
295788
$4,82 Unit Price incl. VAT
11
Spring
295789
$4,82 Unit Price incl. VAT
12
Stop buffer
164245
$0,97 Unit Price incl. VAT
13
Side stand fixing screw.
647595
Not Available
13
Sec. screw
583155
$5,90 Unit Price incl. VAT
14
Gasket
191189
$0,17 Unit Price incl. VAT
15
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
16
screw M6x16
031088
$0,17 Unit Price incl. VAT
17
Switch
582633
$58,05 Unit Price incl. VAT
18
Self locking nut M10
232108
Not Available
18
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
19
Pad
581560
$5,62 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
