Carburettor, assembly - Union pipe for GILERA PIAGGIO VESPA Sprint 4T 4V from 2016

Carburettor, assembly - Union pipe

1

Carburettor keihin NCV20 AR8

CM158005

$819,45 Unit Price incl. VAT

2

Air cleaner sleeve

848680

$12,45 Unit Price incl. VAT

3

Hose clamp

709532

Not Available

4

Union

845737

$22,76 Unit Price incl. VAT

5

Vacuum pipe L=540mm

CM027906

Not Available

6

Hex screw M6x20

018639

$0,16 Unit Price incl. VAT

7

Hose clamp 2,7x132

640879

$0,92 Unit Price incl. VAT

8

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

9

Resistor Module

82961R

Not Available

10

Hose clamp

709532

Not Available

11

Hose clamp

CM002903

$2,95 Unit Price incl. VAT

12

Hose clamp

CM002901

$0,09 Unit Price incl. VAT

13

Solenoid

873270

$84,94 Unit Price incl. VAT

14

Bracket

1D000037

$5,38 Unit Price incl. VAT

15

Screw w/ flange M5x16

830061

$0,34 Unit Price incl. VAT

16

T bush

843213

$0,75 Unit Price incl. VAT

17

Fairlead

487665

$0,84 Unit Price incl. VAT

18

Plain washer 12x5.2x1

006078

$0,08 Unit Price incl. VAT

19

Self locking nut

219727

$3,65 Unit Price incl. VAT

20

Instrument support

639632

$5,45 Unit Price incl. VAT

21

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

22

Hose clamp

CM001911

$3,70 Unit Price incl. VAT

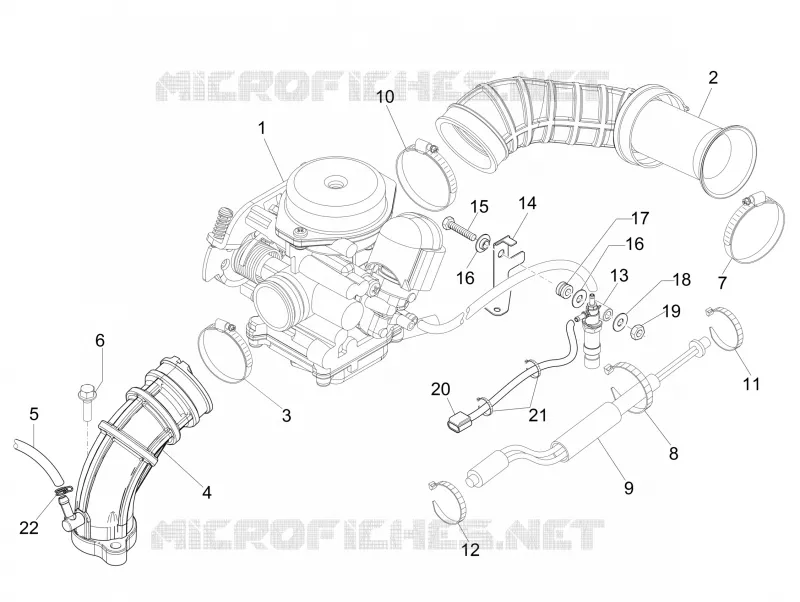

Find the detailed Carburettor, assembly - Union pipe GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
