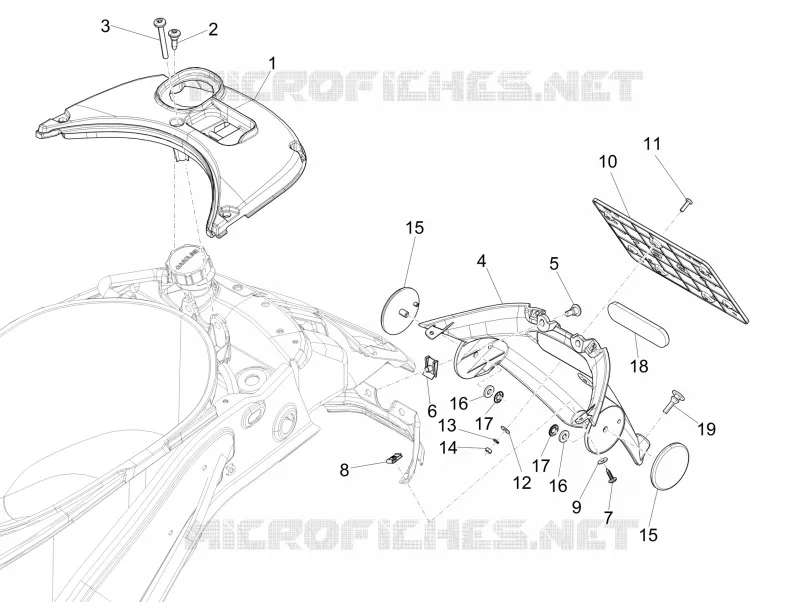

Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
18
19
1
Tank cover
1B000320
$15,22 Unit Price incl. VAT
2
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
3
Metric screw torx
CM179306
$2,95 Unit Price incl. VAT
4
Rear protection
676206000C
$10,63 Unit Price incl. VAT
5
screw
CM179202
$0,25 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
8
Washer 4,5x12x1
016670
$0,09 Unit Price incl. VAT
9
Spring plate
CM017409
$0,08 Unit Price incl. VAT
10
Number plate holder (Plastica 121x141)
638833
$1,65 Unit Price incl. VAT
10
Number plate holder (Plastica 130x105.5)
642235
$7,23 Unit Price incl. VAT
11
Screw M4x12
015996
$0,08 Unit Price incl. VAT
12
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
13
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
14
Nut M4
020104
$1,26 Unit Price incl. VAT
15
Reflector
290315
$7,94 Unit Price incl. VAT
16
Spacer
479882
$0,67 Unit Price incl. VAT
17
Plate
180859
$2,95 Unit Price incl. VAT
18
Rear retroreflector
58233R
Not Available
19
Cover
293717
$0,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
