Main cable harness for GILERA PIAGGIO VESPA Sprint 4T 2V 25 km/h from 2016

Main cable harness

1

Cable harness

1D001566

Not Available

1

Frame harness

1D000150

Not Available

2

Reed fuse 10A

292507

$0,42 Unit Price incl. VAT

3

Cover

290404

$0,42 Unit Price incl. VAT

4

Fuse holder

580653

$35,69 Unit Price incl. VAT

5

Hose clamp

657229

$1,35 Unit Price incl. VAT

6

Hose clamp 2,7x132

640879

$0,92 Unit Price incl. VAT

7

Hose clamp

641764

$0,25 Unit Price incl. VAT

8

Maintenance

584002

$1,77 Unit Price incl. VAT

9

Cover

1D000563

$6,46 Unit Price incl. VAT

10

Non return spring L=23

CM006908

$0,50 Unit Price incl. VAT

11

Non return spring

CM006911

$0,42 Unit Price incl. VAT

12

Elastic spring

231590

$0,25 Unit Price incl. VAT

13

Spring for connector

639560

$0,67 Unit Price incl. VAT

13

Connector spring

584520

$5,38 Unit Price incl. VAT

14

Hose clamp

1D000071

$2,95 Unit Price incl. VAT

15

Pipes/cables retainer spring

CM006903

$1,43 Unit Price incl. VAT

16

Spring

CM013201

$0,40 Unit Price incl. VAT

17

Sheet edge spring

CM013203

$0,67 Unit Price incl. VAT

18

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

19

Screw w/ flange M6x16

B016777

$0,16 Unit Price incl. VAT

20

Bracket

1D000228

$5,38 Unit Price incl. VAT

21

Tri/lobed hexagonal self-tapping screw

641204

$0,34 Unit Price incl. VAT

22

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

23

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

24

USB port

1D001377

Not Available

25

Fairlead

1D000383

$3,51 Unit Price incl. VAT

25

Fairlead

1B001591

$1,56 Unit Price incl. VAT

26

Luggage protection device

1D000298

$43,20 Unit Price incl. VAT

27

Spring plate M6

254485

$0,34 Unit Price incl. VAT

28

Screw w/ flange M6x16

B016777

$0,16 Unit Price incl. VAT

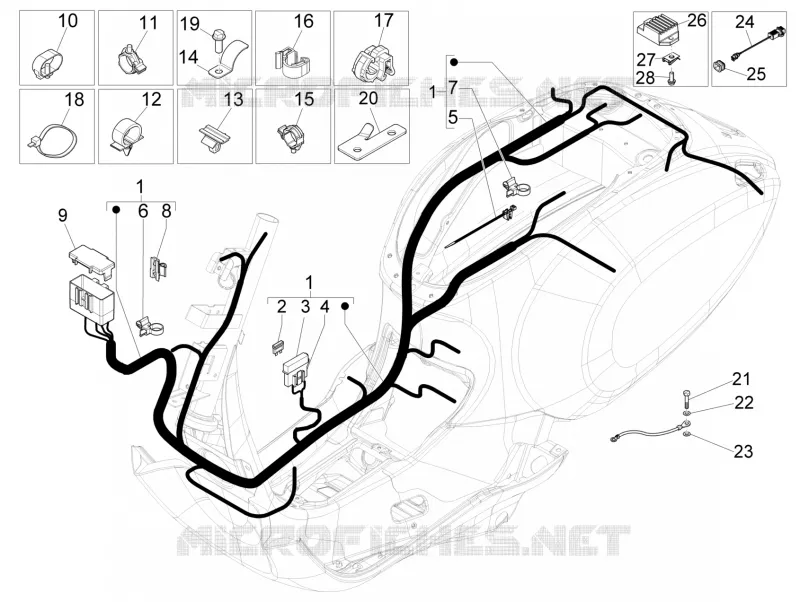

Find the detailed Main cable harness GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
