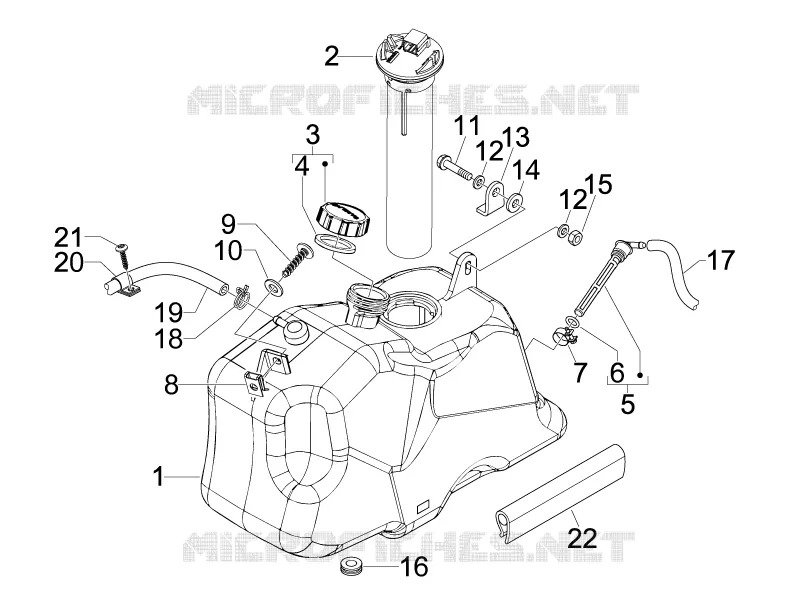

Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
1
Tank
622252
$158,31 Unit Price incl. VAT
2
Indicator fuel level
CM025706
$110,21 Unit Price incl. VAT
3
Plug
259832
$1,10 Unit Price incl. VAT
4
Tank cover gasket
258160
$1,00 Unit Price incl. VAT
5
Complete coupling
574358
Not Available
6
Gasket
196868
$3,70 Unit Price incl. VAT
7
Hose clamp
577557
Not Available
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
10
Washer
078307
$0,17 Unit Price incl. VAT
11
Screw w/ flange M6x25
414837
Not Available
12
Flat washer
270216
$2,99 Unit Price incl. VAT
13
PLATE
622305
Not Available
14
Spacer
622306
$1,51 Unit Price incl. VAT
15
Self locking nut
012138
$0,17 Unit Price incl. VAT
16
Elastic drift
463195
Not Available
17
Fuel pipe
CM004126
Not Available
18
Hose clamp
CM001901
$0,76 Unit Price incl. VAT
19
Fuel pipe
CM011901
$7,23 Unit Price incl. VAT
20
Hose clamp
847778
$0,33 Unit Price incl. VAT
21
Screw M5x10
018575
$2,95 Unit Price incl. VAT
22
Guard
580160
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
